AC640 Thermal Imaging Core Module
-
Estimated Delivery:Jun 10 - Jun 14
-
Free Shipping & Returns: On all orders over $75

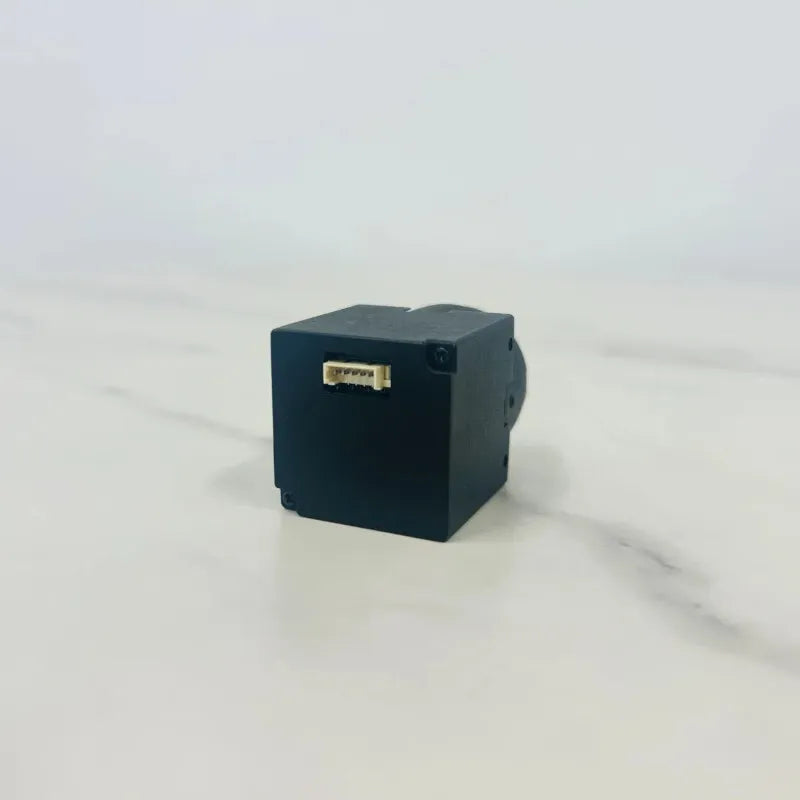

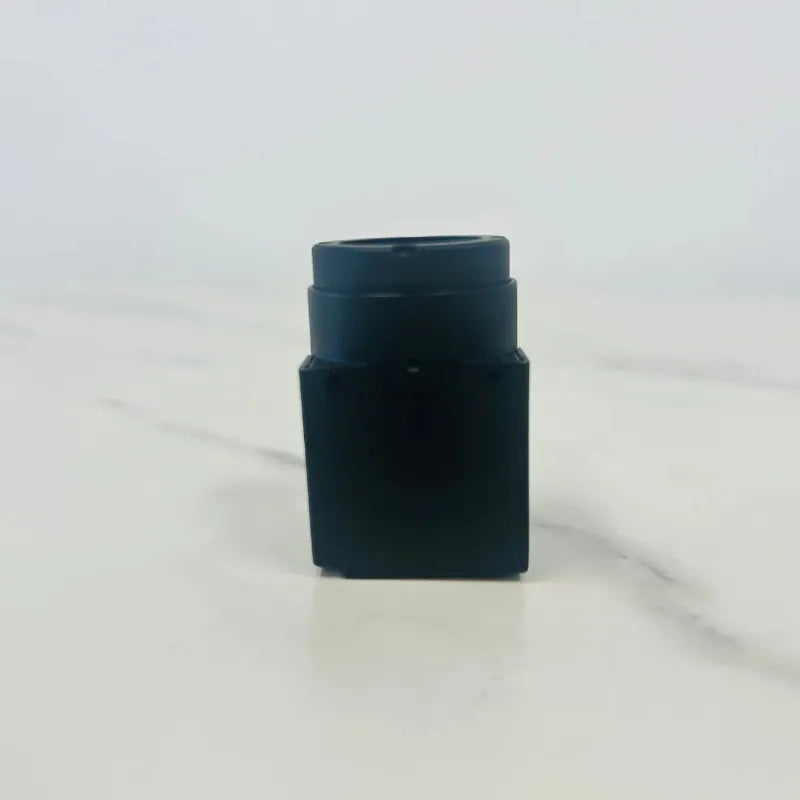

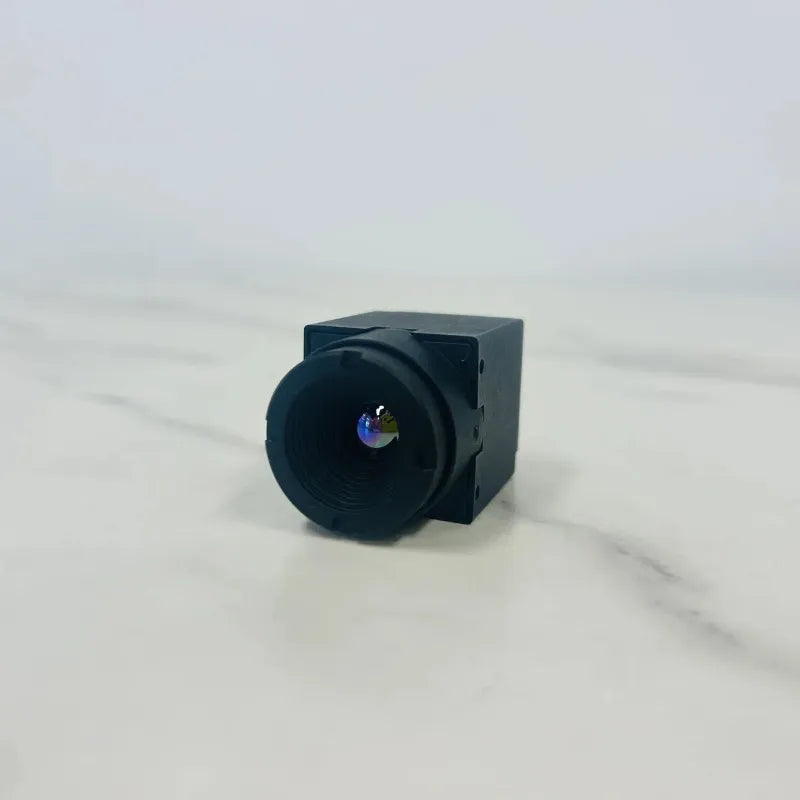

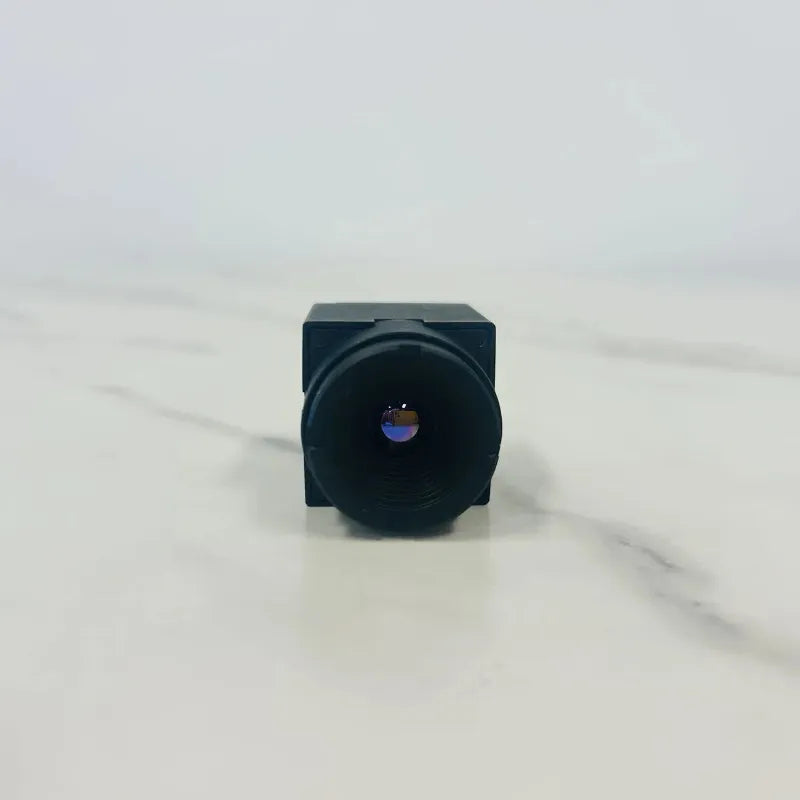

AC640 Thermal Imaging Core Module
| Technical characteristics | AC640 |
|---|---|
| Detector type | Uncooled focal plane array detector (VOx - Vanadium Oxide) |
| Spectral response | 8 - 14μm |
| Pixel pitch | 12μm |
| Array Format | 640×512 |
| Noise Equivalent Temperature Difference (NETD) | <35mK (f/1.0 50Hz 300K) |
| Detector frame rate | 60Hz |
| Graphics Interface | CVBS (PAL) |
| Control interface | UART |
| Main Features | Digital zoom, pseudo color switching |
| Pseudo-color mode | White hot, black hot, red hot, iron red |
| Scene Mode | User, Plain, Forest |
| brightness | Adjustable |
| Contrast | Adjustable |
| Digital zoom | 1× to 8× continuous digital zoom (0.5× steps) |
| Shutter Mode | With shutter, automatic shutter activation |
| Lid calibration | Lid calibration using a host computer via the UART serial port |
| Non-uniformity correction (NUC) | Calibration using a host computer via the UART serial port |
| Power Input | CVBS (4.6 - 18V) |
| Operating temperature | -30℃~+60℃ |
| impact resistance | 1000g |
| Lens options | 9mm, various lenses available |
| Secondary development | / |
