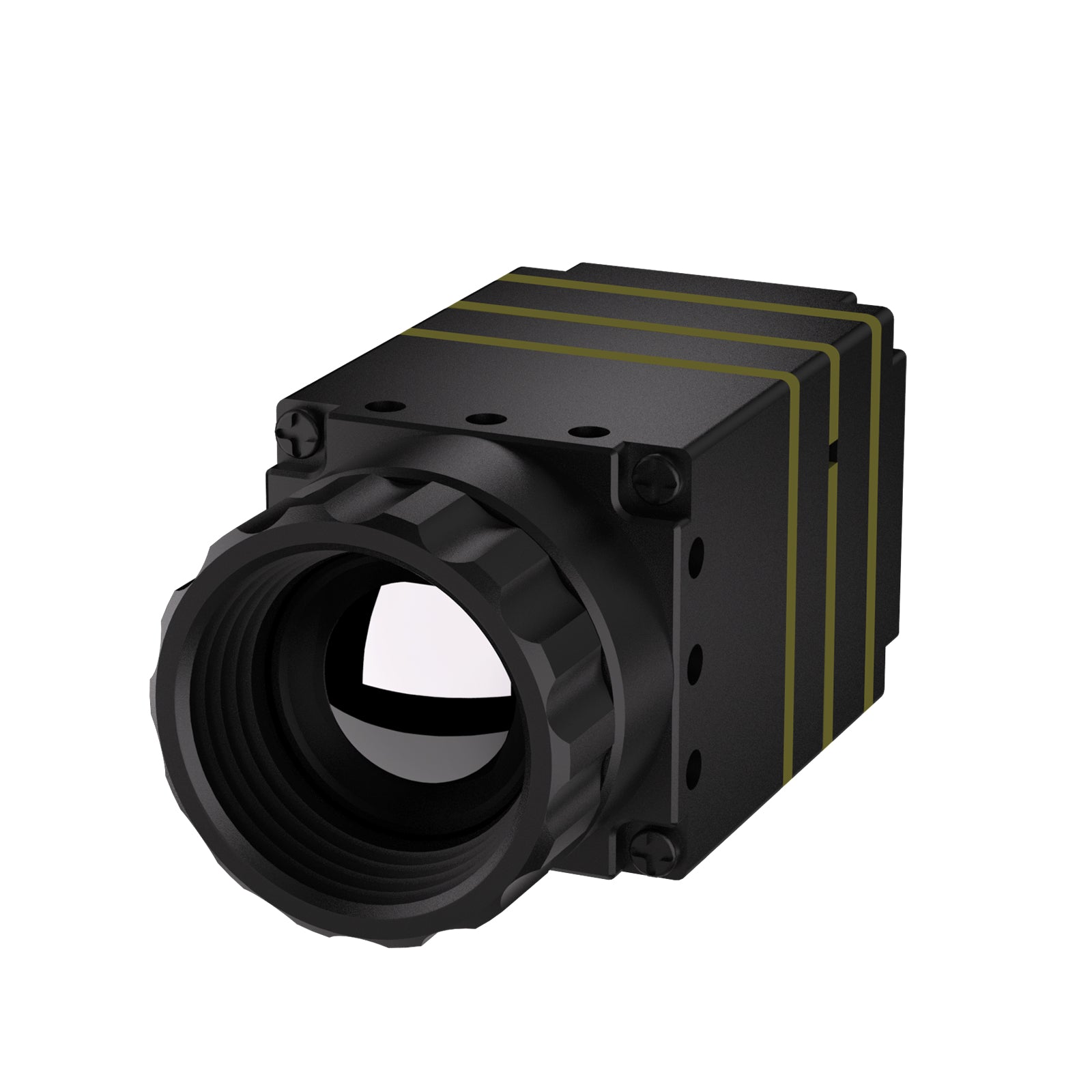

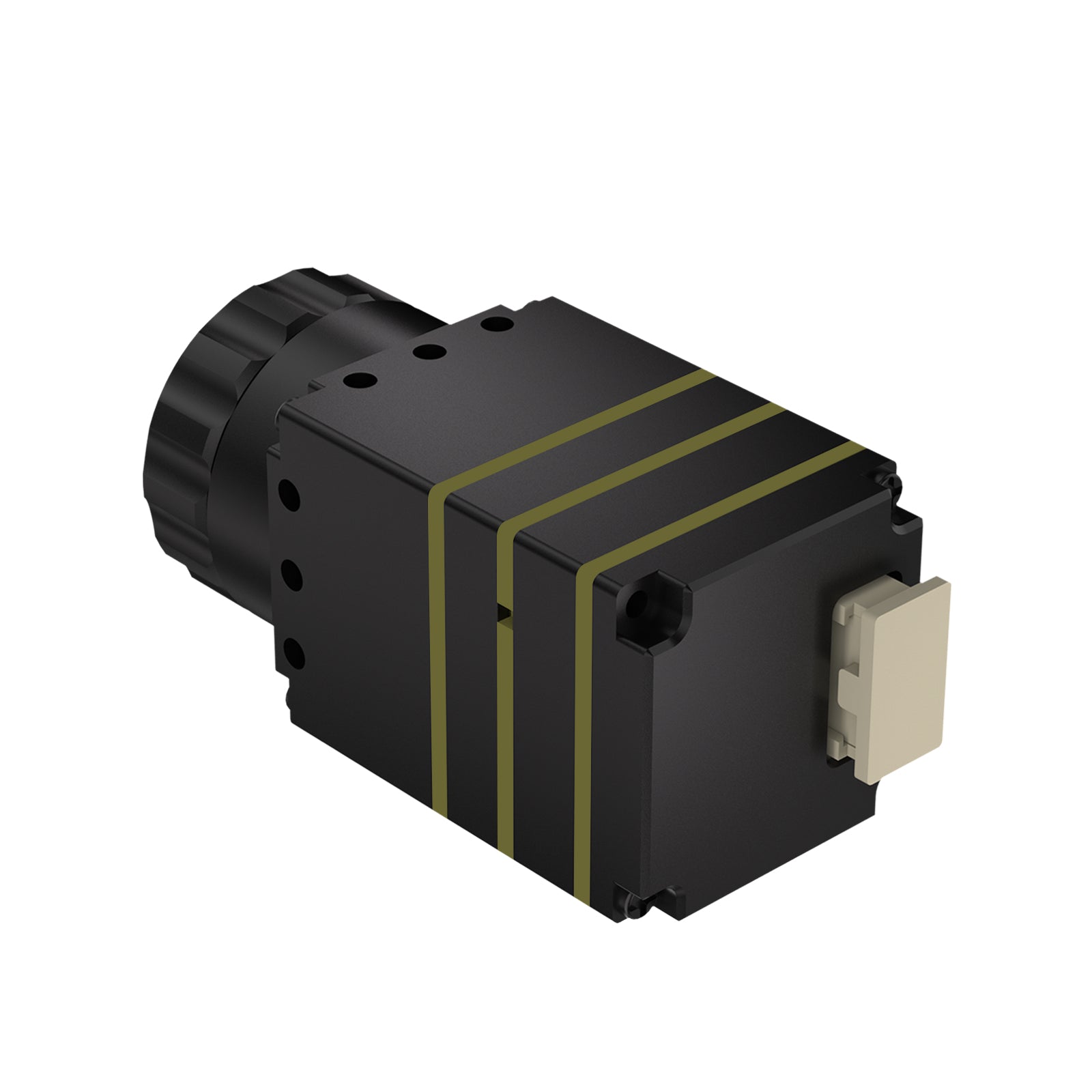

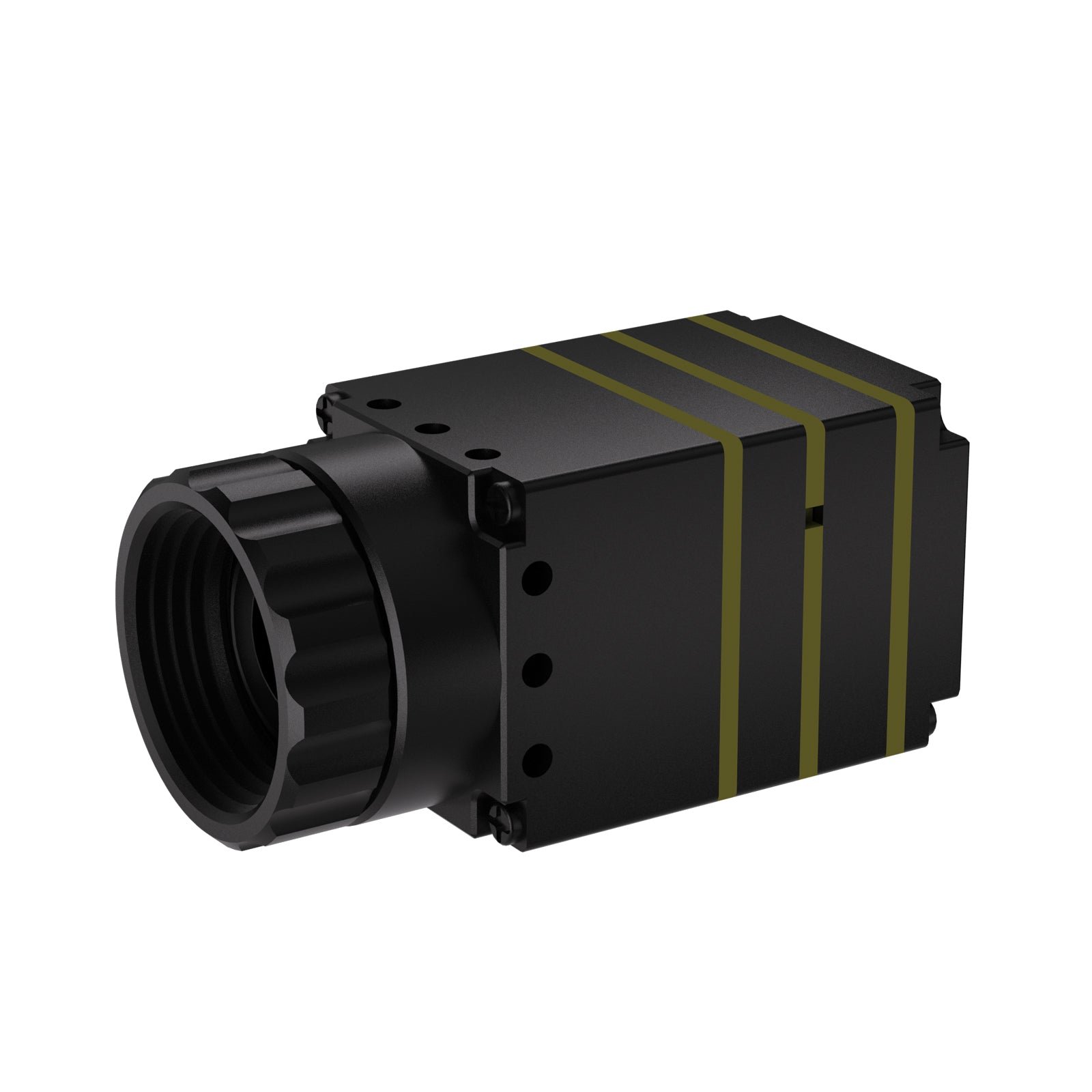

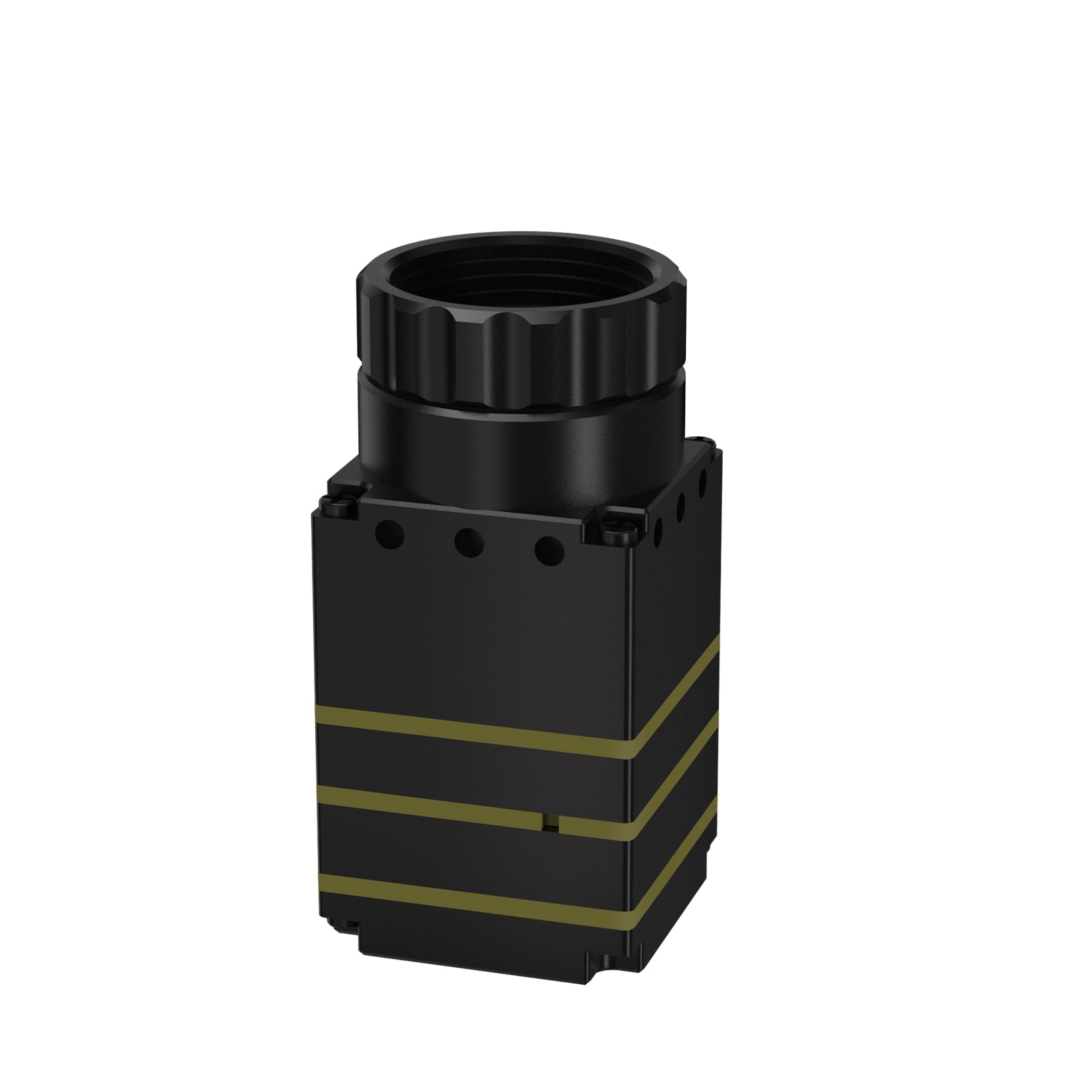

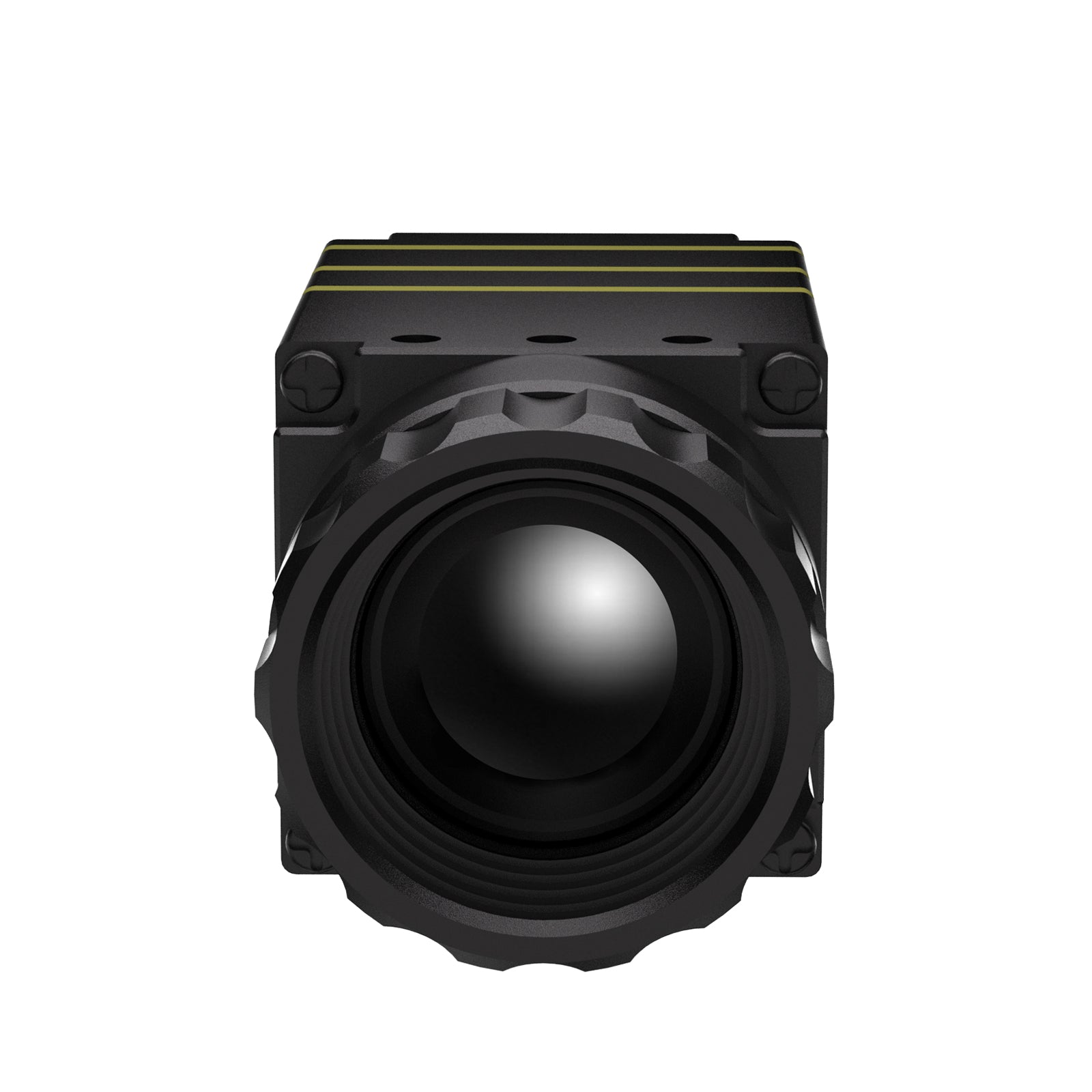

M2 Series Multifunctional Thermal Imaging Module
The M2 Series features an uncooled vanadium oxide (VOx) focal plane array detector with an 8–14 μm spectral response range, a 12 μm pixel pitch, and a 256 × 192 detector resolution.
With an NETD of ≤25 mK and a 50 Hz frame rate, the M2-C Series delivers smooth thermal imaging with enhanced sensitivity and clear target detail. It is equipped with a CVBS analog video output in PAL format and a UART control interface with a baud rate of 115200. The module supports 1× to 8× digital zoom, multiple color palettes—including White Hot, Black Hot, Red Hot, and Iron Red—as well as adjustable brightness, contrast, and image enhancement settings.
The module operates on a wide 4.5–18 VDC input with power consumption of ≤0.8 W. It is designed for operating temperatures from −20°C to +60°C and provides shock resistance of up to 80 g at 4 ms.
Available with either a 4 mm or 9 mm lens, the M2-C Series offers flexible options for different observation requirements. The 4 mm model provides a wider 42° × 32.1° field of view and a detection range of up to 400 m, while the 9 mm model provides a narrower 19.4° × 14.6° field of view and a detection range of up to 900 m.

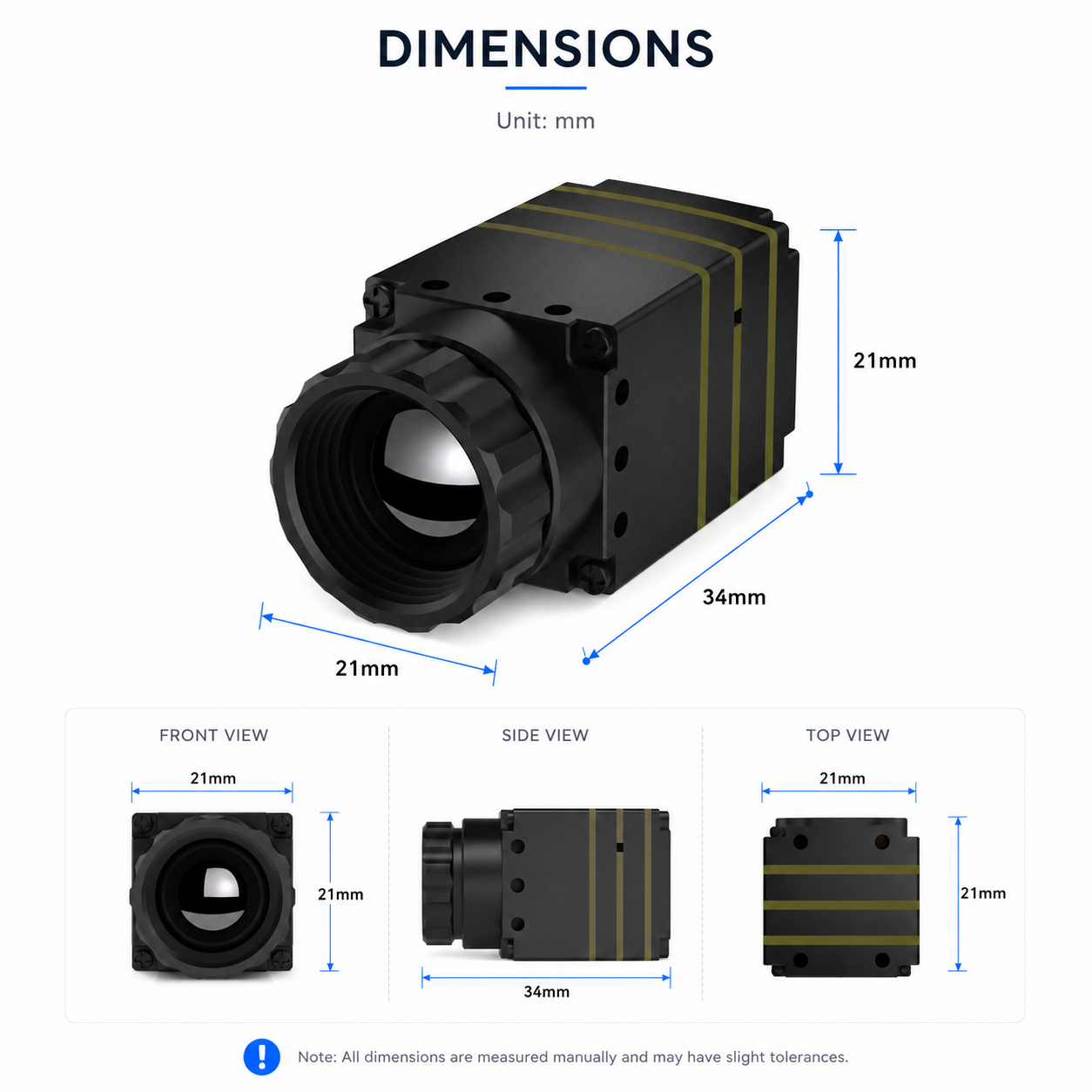

With a compact size of 21 × 21 × 34 mm and a lightweight design of only 26 g, the M2-C Series is well suited for integration into UAVs, handheld thermal devices, security systems, industrial equipment, and other compact thermal imaging applications.
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
Technical Datasheet
Review the product specifications online or open the complete technical document in PDF format.
Application Scenarios and Solutions
Portable Device Integration
Compact thermal imaging modules can be integrated into portable devices and mobile observation systems.
- Compact size and lightweight design simplify device integration
- Wide-voltage power input supports different system requirements
- Electronic zoom provides flexible adjustment of the observation range
Outdoor Monitoring
High thermal sensitivity supports heat-source detection in forests, plains and other complex outdoor environments.
- Multiple scene modes support different outdoor environments
- Robust design for operation in demanding field conditions
- Wide operating-temperature range for different climates
Industrial Thermal Inspection
Thermal imaging modules can be used for equipment monitoring and rapid identification of abnormal temperature areas.
- Multiple image-processing modes for industrial environments
- Multiple color palettes provide intuitive visualization of thermal differences
- High frame rate supports smooth real-time thermal imaging
UAV / UGV Integration
Compact thermal imaging modules support integration into unmanned aerial and ground platforms.
- Flexible interfaces support integration with different platforms
- Compact architecture simplifies installation and system integration
- Low power consumption supports power-constrained embedded systems
- Stable video output provides consistent thermal imaging performance
