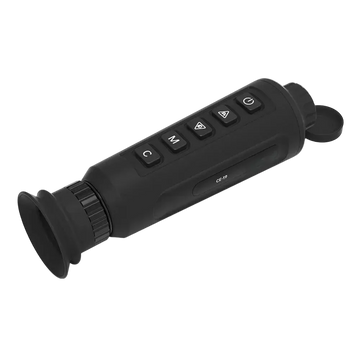

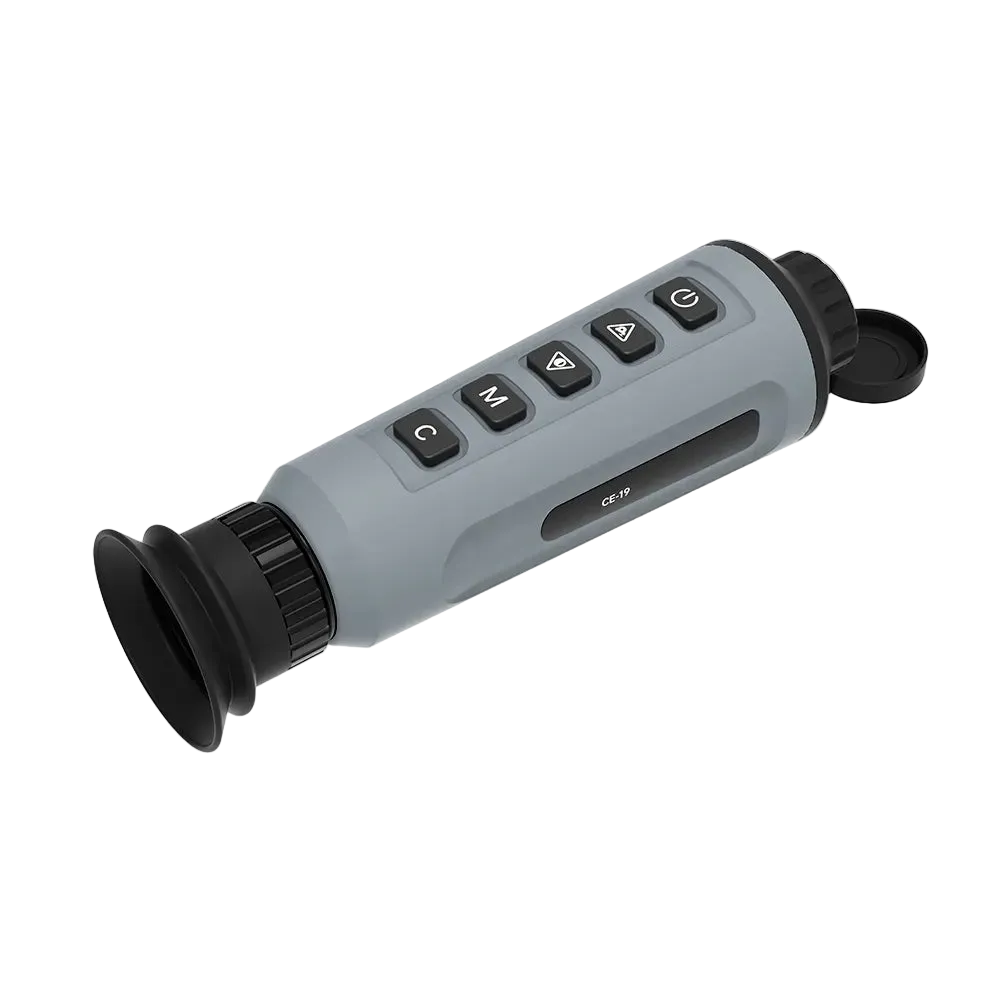

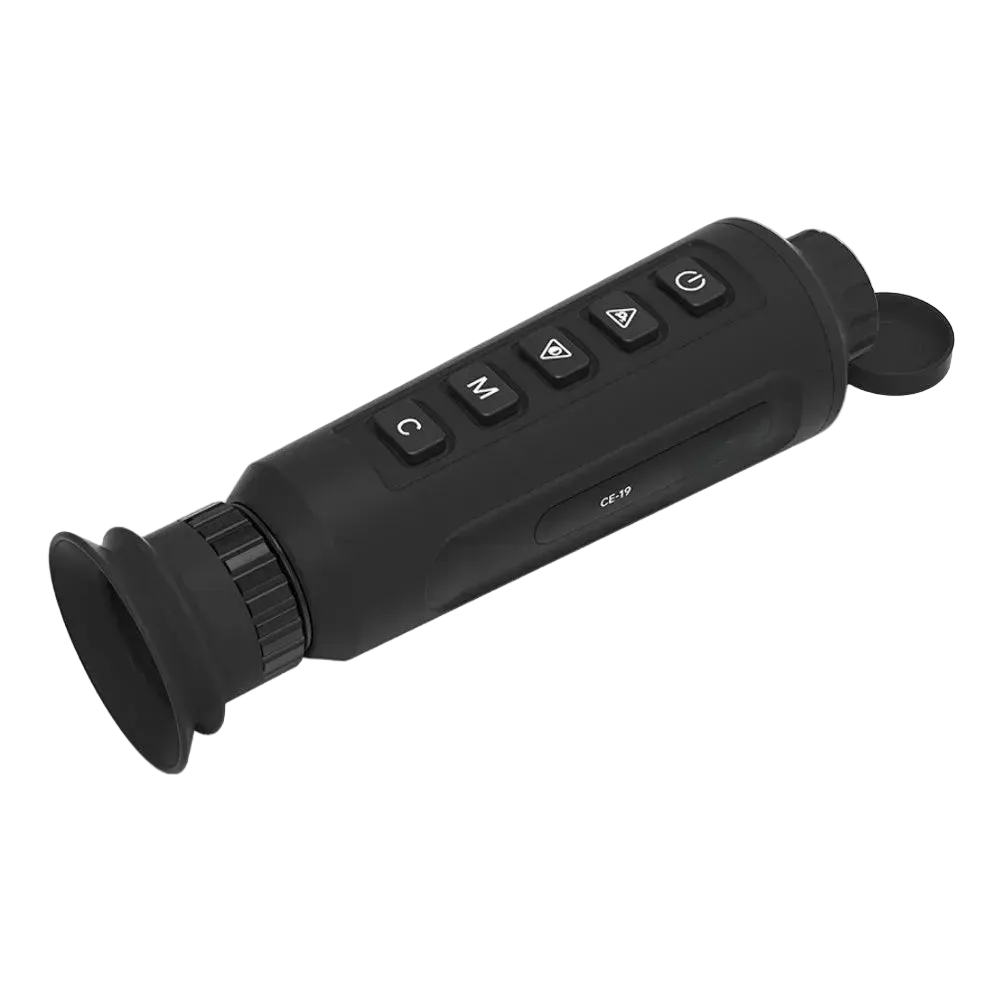

TKK-ORION Thermal Monoculars
-
Estimated Delivery:Jul 27 - Jul 31
-
Free Shipping & Returns: On all orders over $75
TKK-ORION Thermal Monoculars
| Model | CE - 19 | CE-19L |
| <Lens> | ||
| Objective | 19mm (25mm optional) | 19mm (25mm optional) |
| <Observation Range> | ||
| Detection | 980m | 950m |
| Identification | 478m | 409m |
| <Sensor> | ||
| Sensor Type | Vanadium Oxide Uncooled Sensor | Vanadium Oxide Uncooled Sensor |
| Spectral range | 8 - 14μm | 8 - 14μm |
| Resolution, pixel pitch | 384×288 pixels, 12μm | 384×288 pixels, 17μm |
| Field of view (horizontal × vertical) | 15.8°×10.6° | 14.5°×11.6° |
| Noise Equivalent Temperature Difference (NETD) | ＜50mK @ 25℃，F#1.0 | ＜50mK @ 25℃，F#1.0 |
| Frame rate | ＜50fps | ＜50fps |
| <Image Display> | ||
| Display | 0.39″ OLED, 1024×768 pixels, 50Hz | 0.39″ OLED, 1024×768 pixels, 50Hz |
| Brightness/Contrast | 5 levels adjustable | 5 levels adjustable |
| Digital zoom | X1, X2, X4, X8 | X1, X2, X4, X8 |
| Hot Spot Tracking | support | support |
| Color Palette | Black hot, white hot, red hot, fusion | Black hot, white hot, red hot, fusion |
| Cursor | support | support |
| <Function> | ||
| Hotspot Network | support | support |
| Video Recording/ Screenshot | support | support |
| Laser positioning | support | support |
| CVBS output | support | support |
| <Power Supply> | ||
| External power supply | Type-C 5V/1A | Type-C 5V/1A |
| Power consumption | 0.85W (when CVBS output is off) | 0.85W (when CVBS output is off) |
| Battery type, battery life | Rechargeable lithium battery, >8H | Rechargeable lithium battery, >8H |
| <General> | ||
| Storage | Built-in storage module (16G) | Built-in storage module (16G) |
| Protection level | IP67 | IP67 |
| Dimensions (mm), Weight | 59×24×215, 400g | 59×24×215, 400g |
