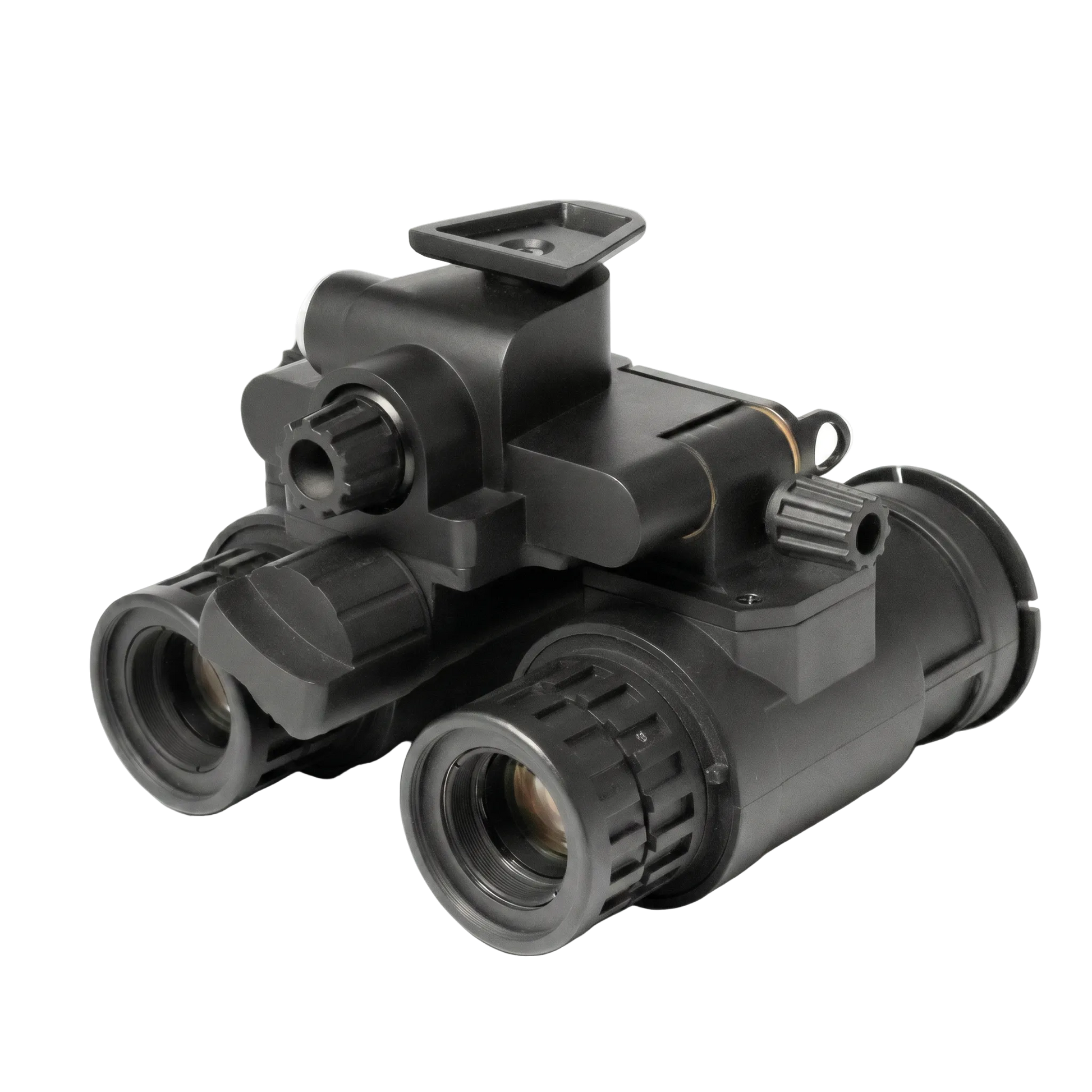

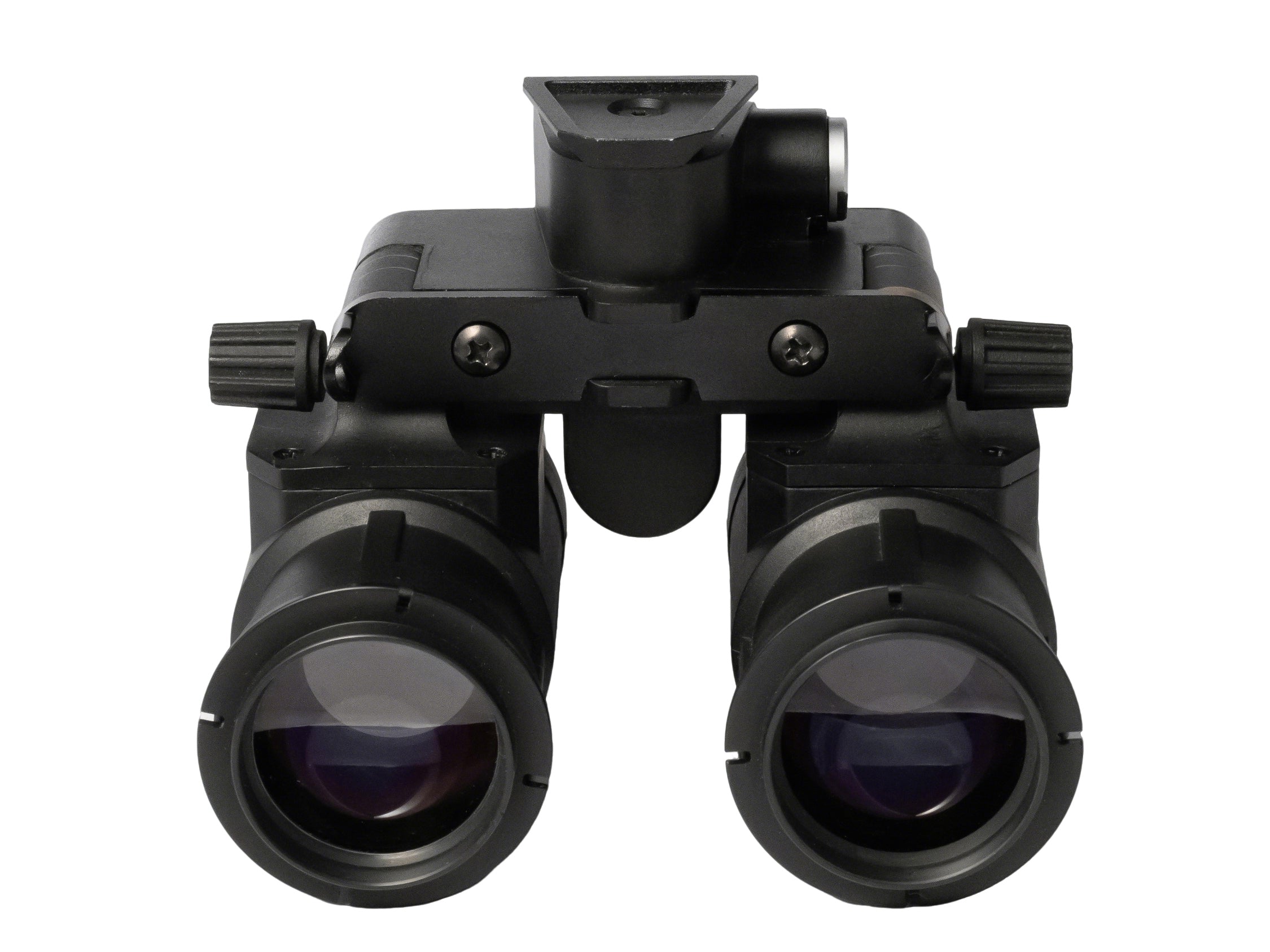

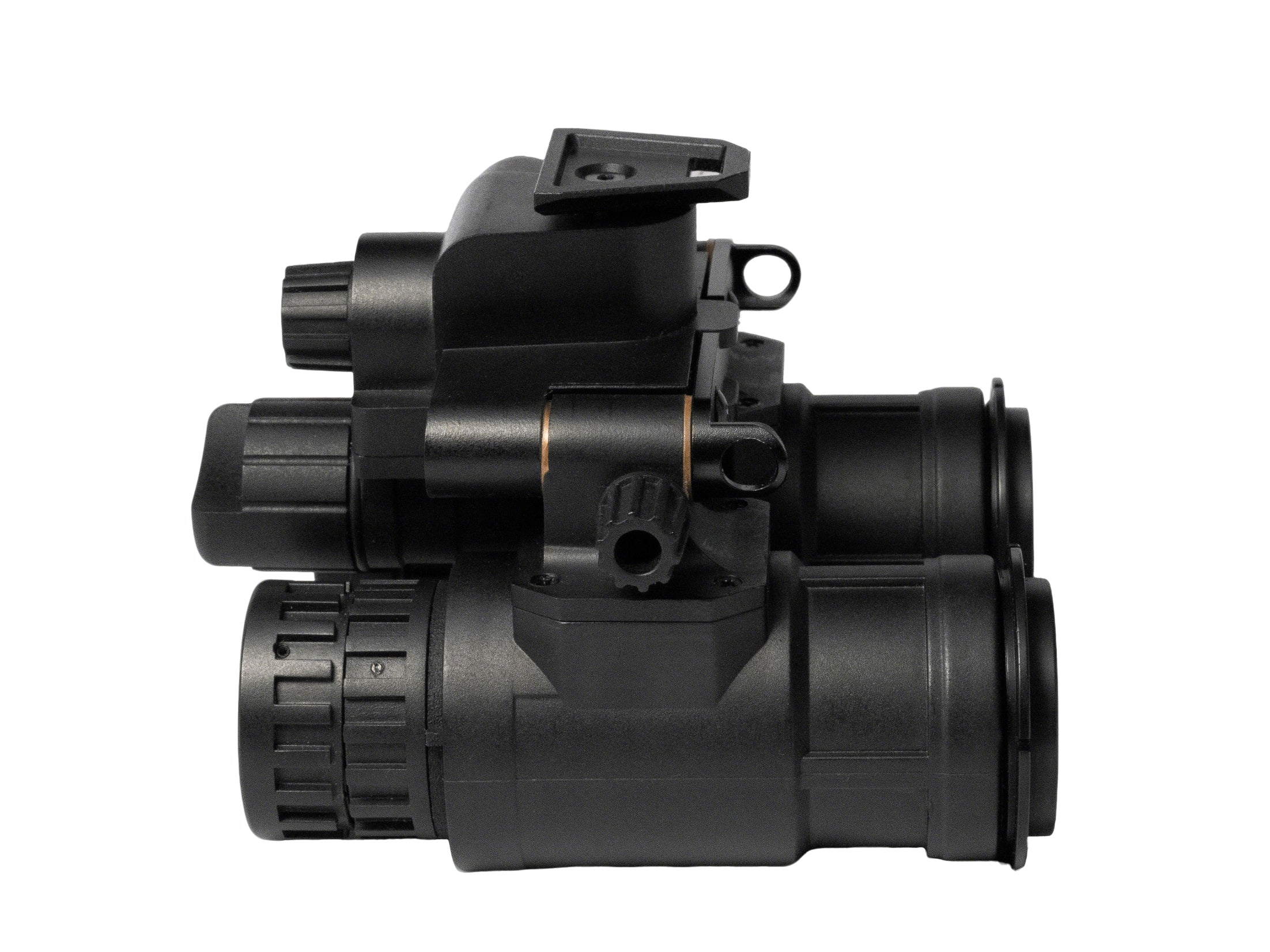

PLAN-31 Night Vision Gear
-
Estimated Delivery:Jul 27 - Jul 31
-
Free Shipping & Returns: On all orders over $75

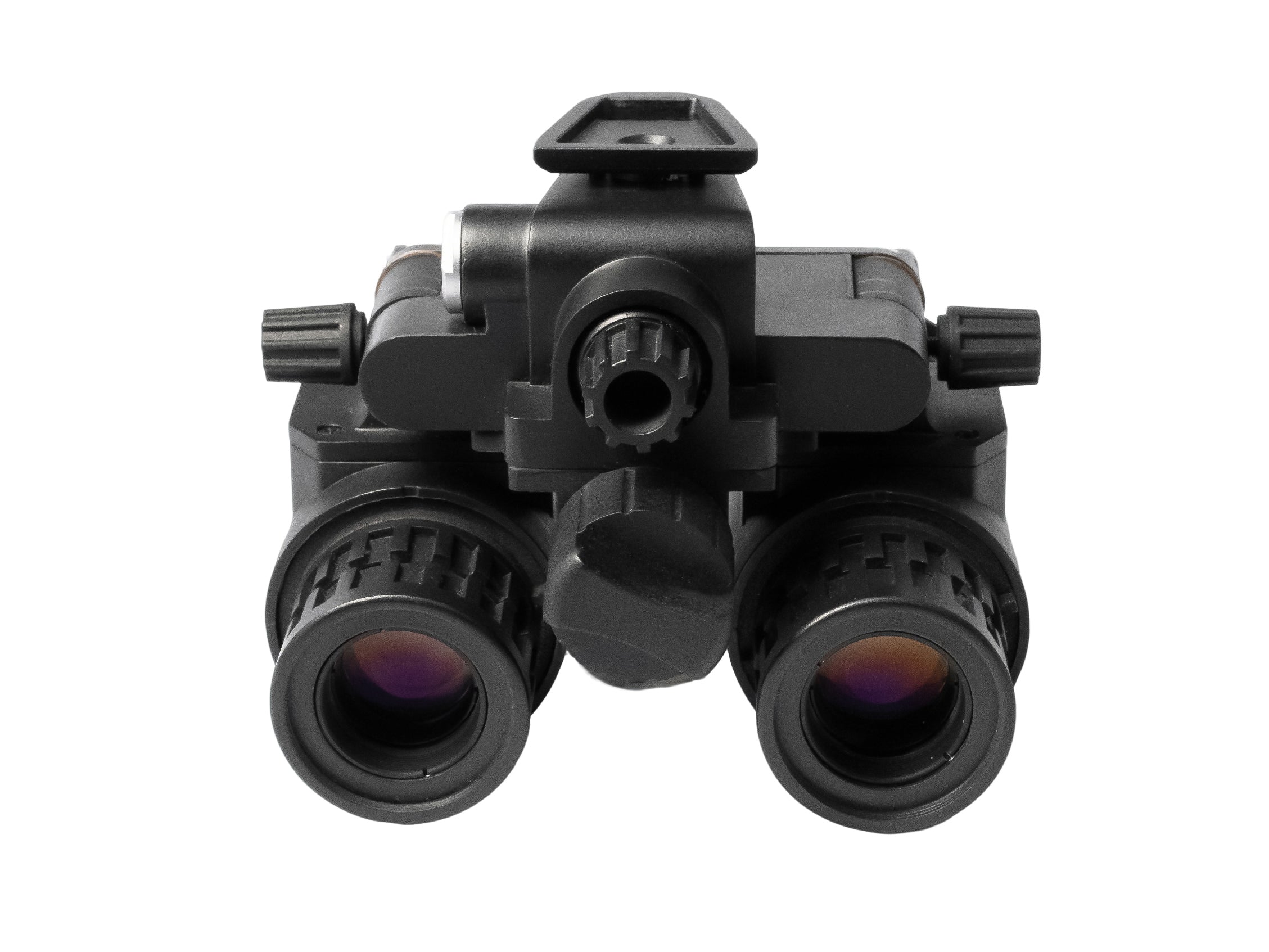

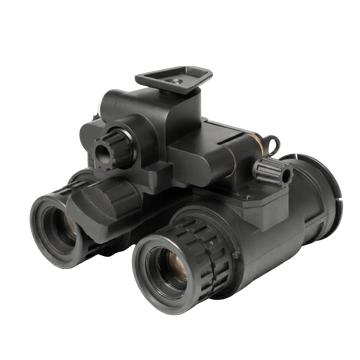

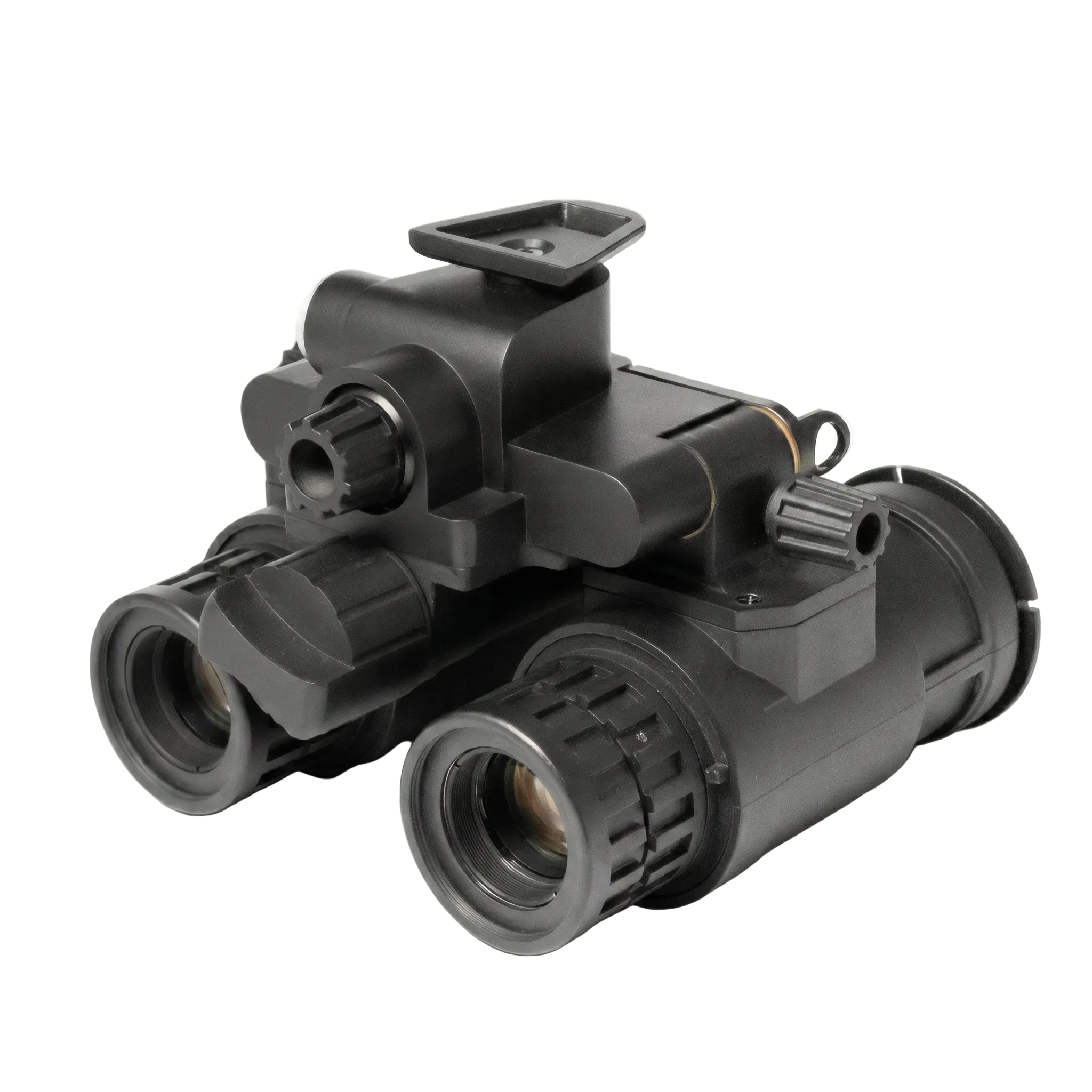

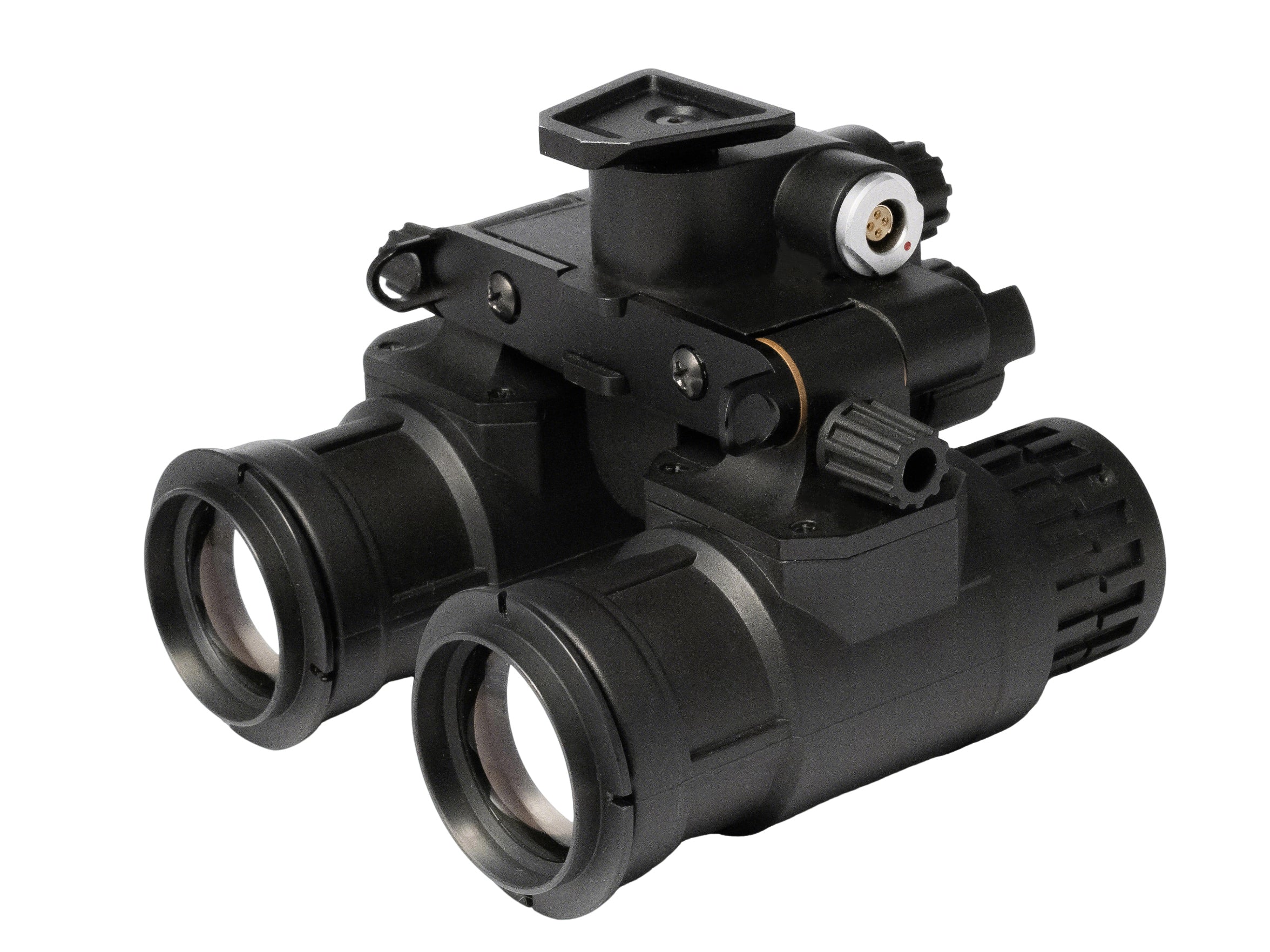

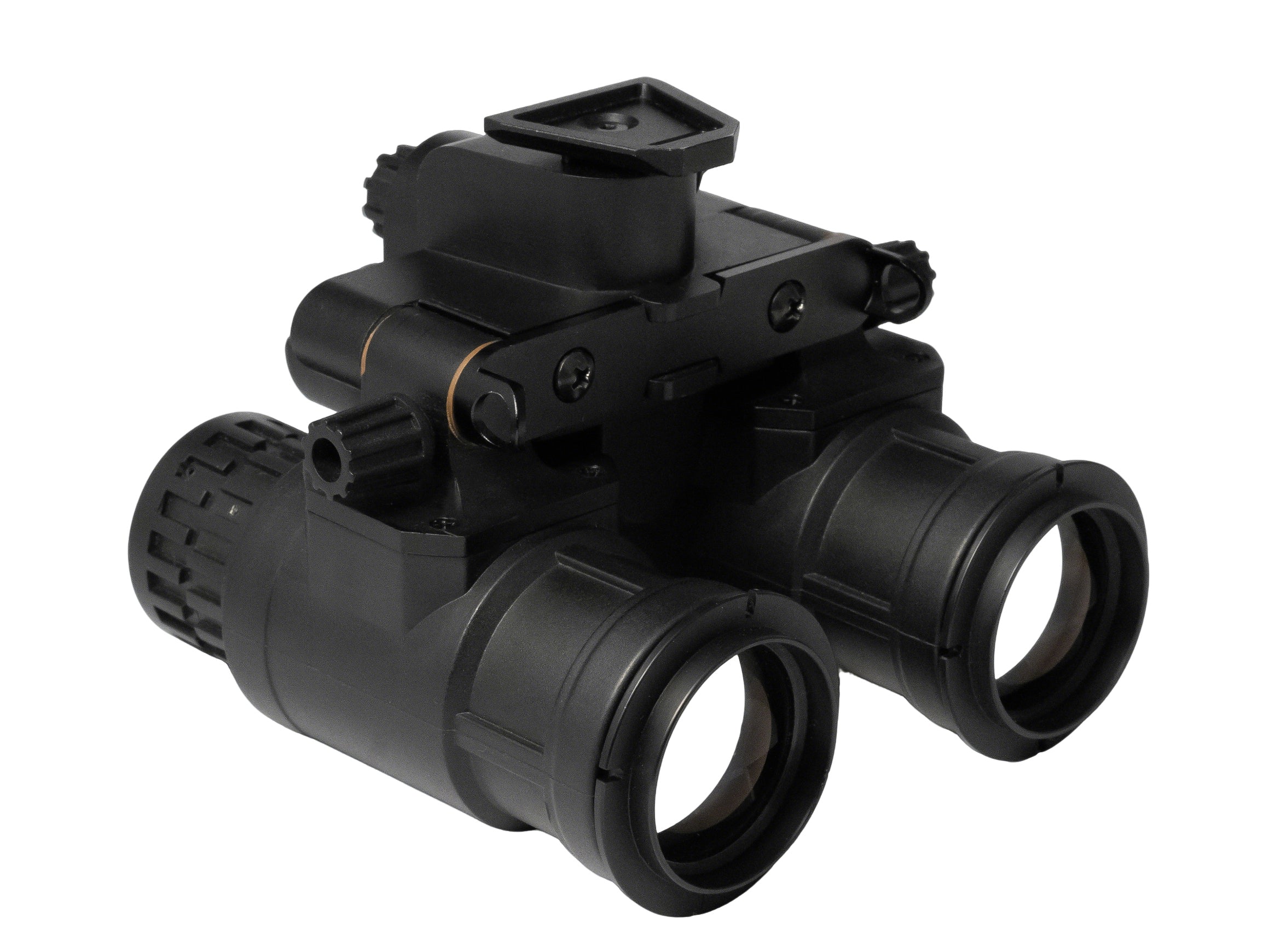

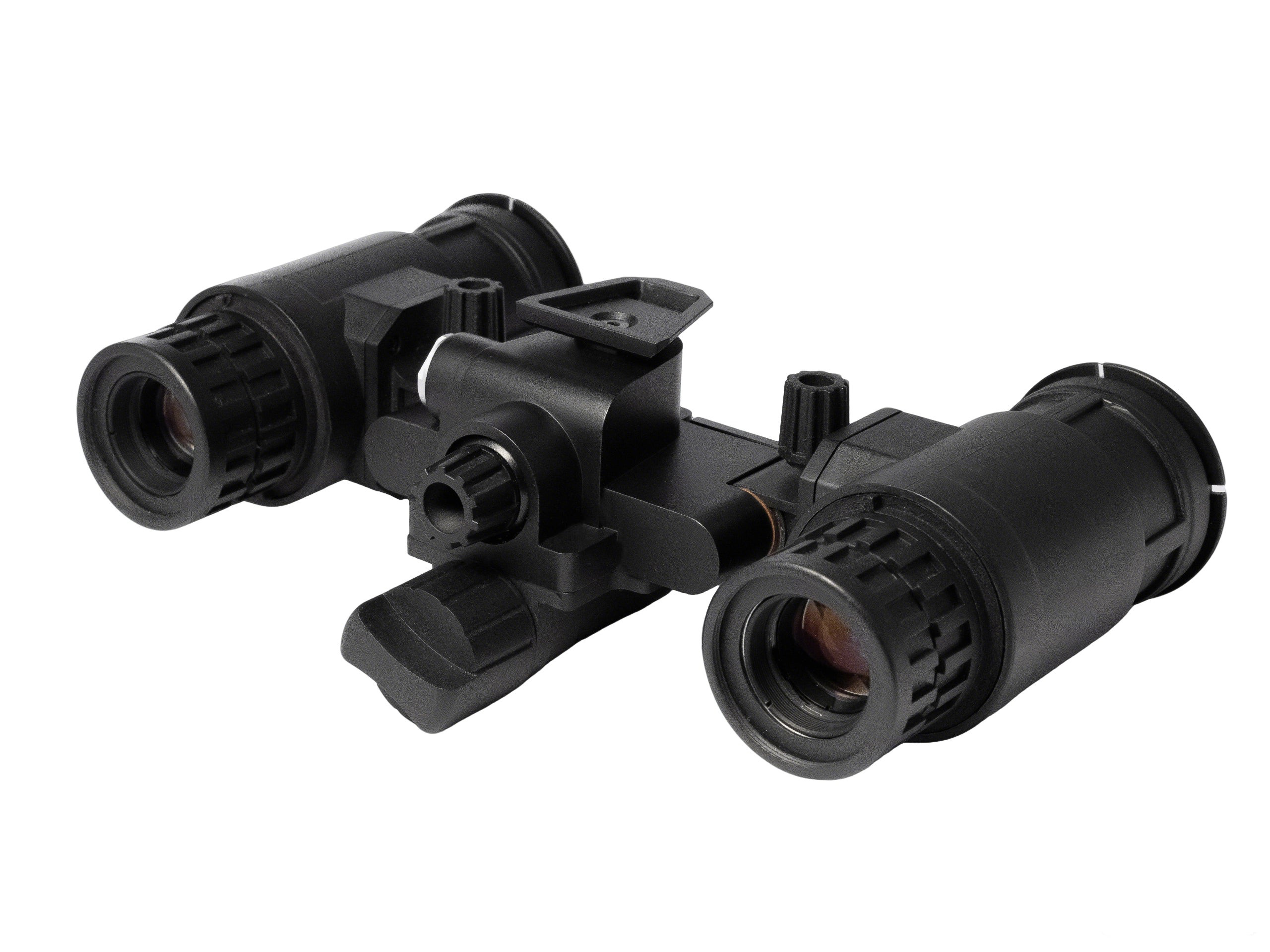

PLAN-31 Night Vision Gear
| Main technical parameters | Parameter Details |
|---|---|
| Image sensor size | 1 inch |
| Spectral response range | 400nm～1100nm |
| Minimum illumination (without fill light) | 0.00005Lx (better than G3 FOM 2000) |
| Frame rate | 50Hz/100Hz |
| Optical parameters | |
| Objective lens focal length | 19.8mm |
| Aperture value | F1.05 |
| Field of view | 50° (＞40°×30°) |
| Exit pupil diameter | 8mm |
| Exit pupil distance | 23mm |
| Magnification | 1× |
| Minimum focal length of objective lens | 250mm |
| Diopter | -4D～+4D |
| Machine Parameters | |
| Boot time | ＜4s |
| Battery | 1 16340 rechargeable lithium battery Compatible with CR123A disposable lithium battery and 18650 rechargeable lithium battery [1] |
| Working hours | ＞18 hours【2】 |
| Size | 113×57×66mm (with 18650 battery) 95×57×66mm (with 16340/CR123A battery) |
| Mechanical interface | Helmet mount with standard Wilcox interface |
| Expandable electrical interface | 9-pin aviation socket |
| Protection level | IP67 |
| Weight (with battery, without bracket) | ＜299g (magnesium-aluminum alloy, equipped with 18650 battery) ＜263g (magnesium-aluminum alloy, equipped with 16340/CR123A battery) |
| Environmental adaptability | Working temperature: -20℃～55℃ (can be extended to -40℃～60℃) Storage temperature: -25℃～55℃ (can be extended to -45℃～70℃) |
| Human body detection distance | Detection: 935m / Identification: 468m / Recognition: 234m |
| Vehicle detection distance | Detection: 1265m / Identification: 633m / Recognition: 316m |
