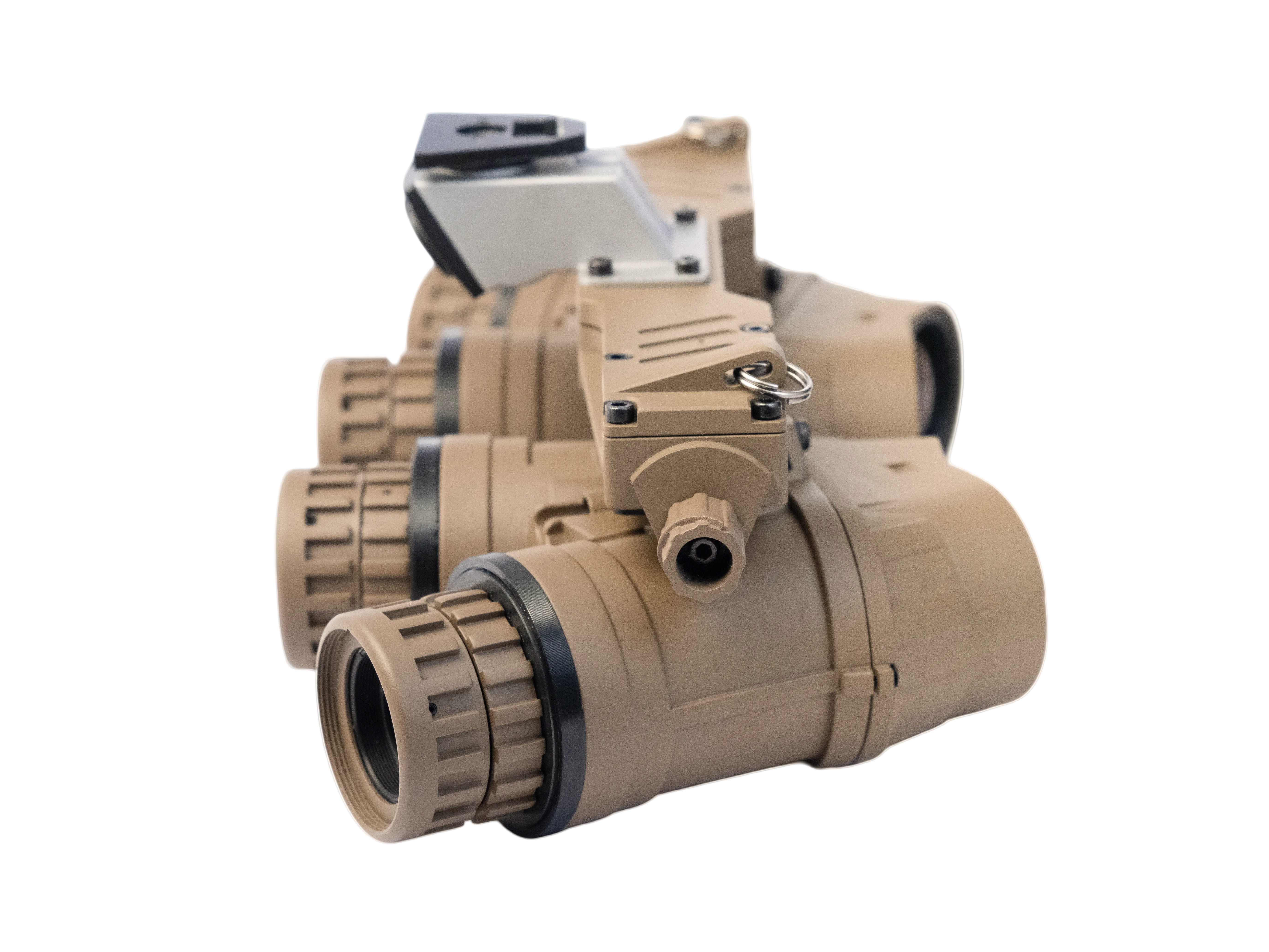

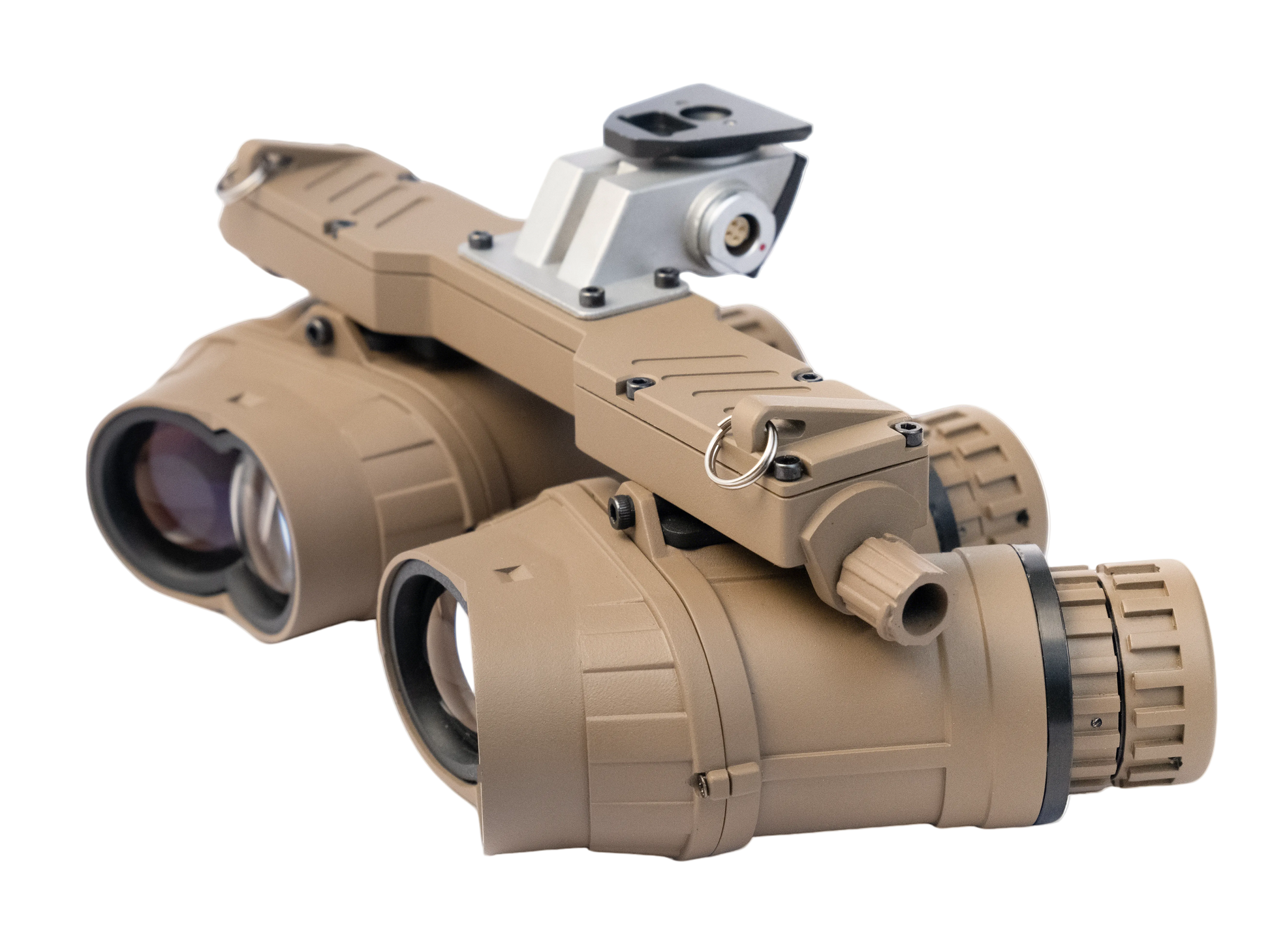

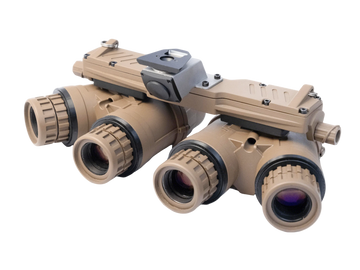

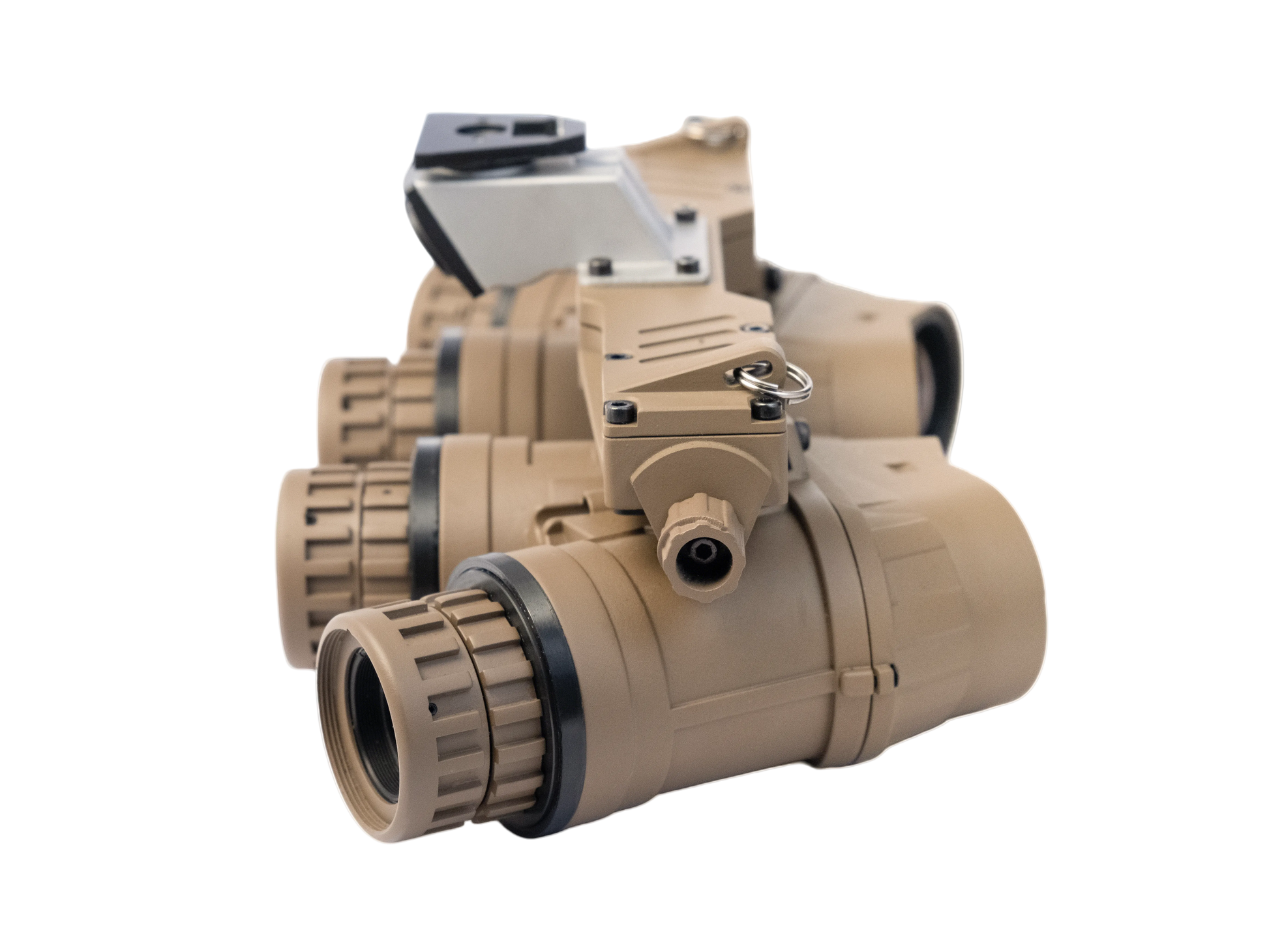

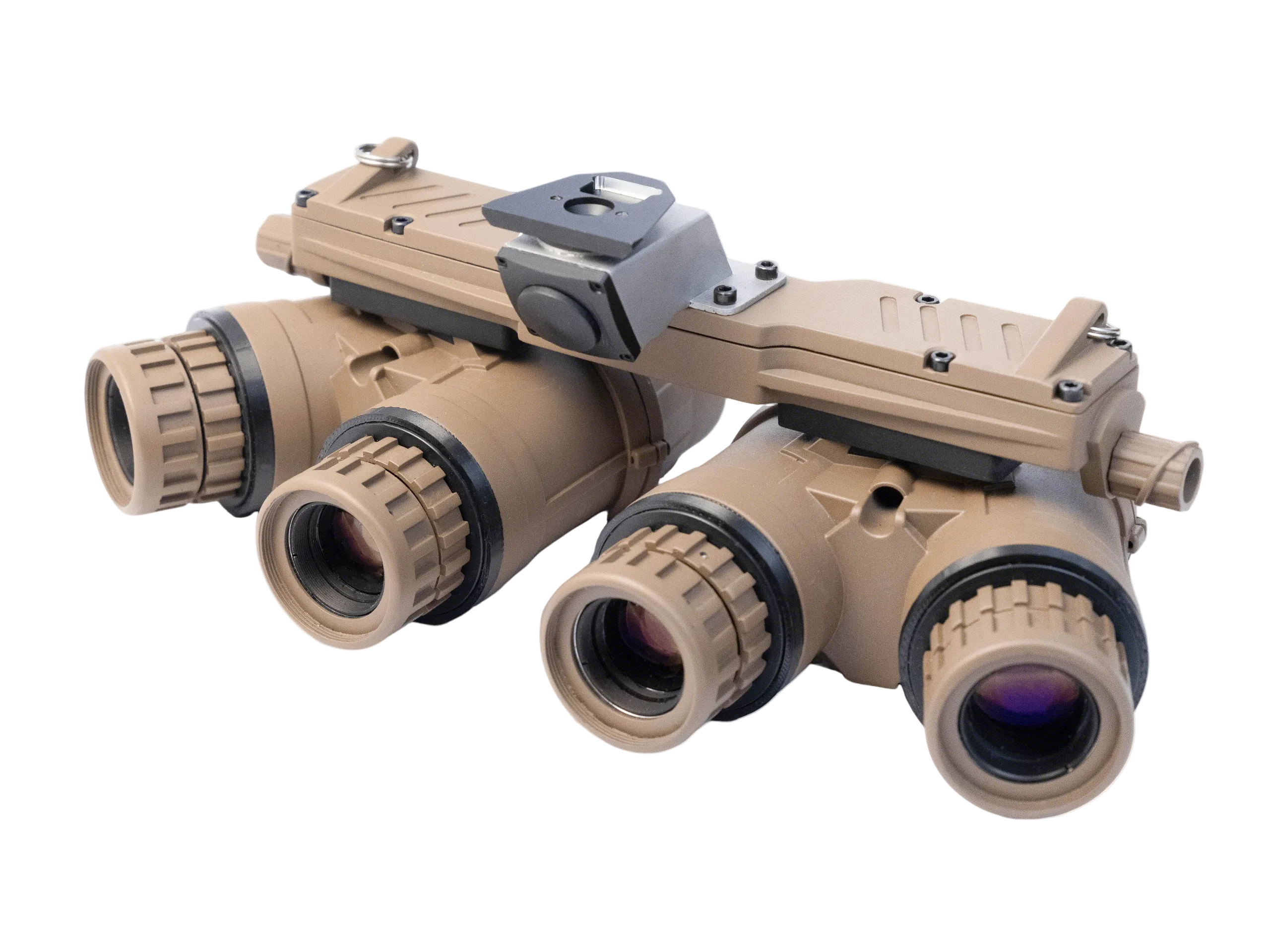

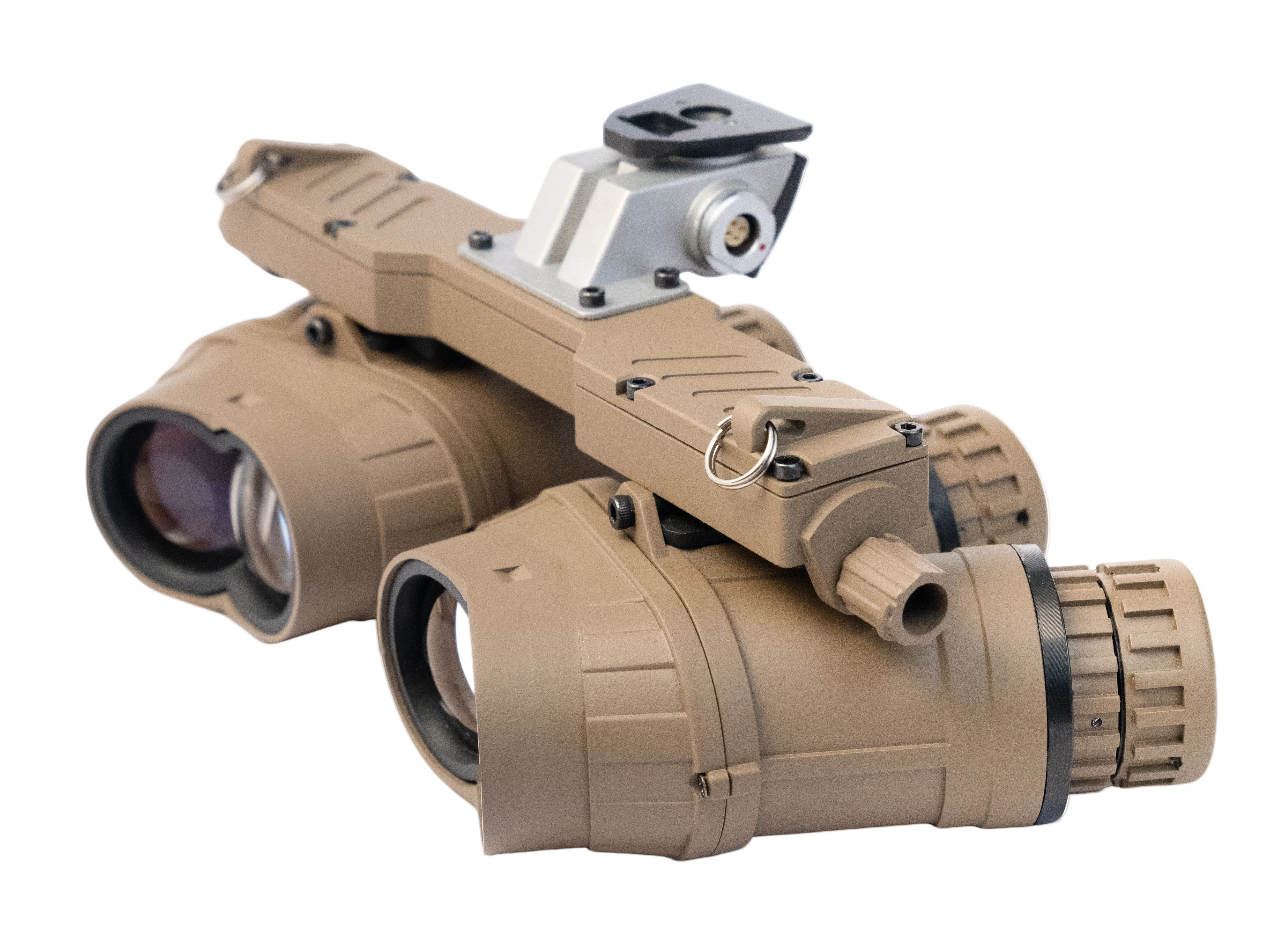

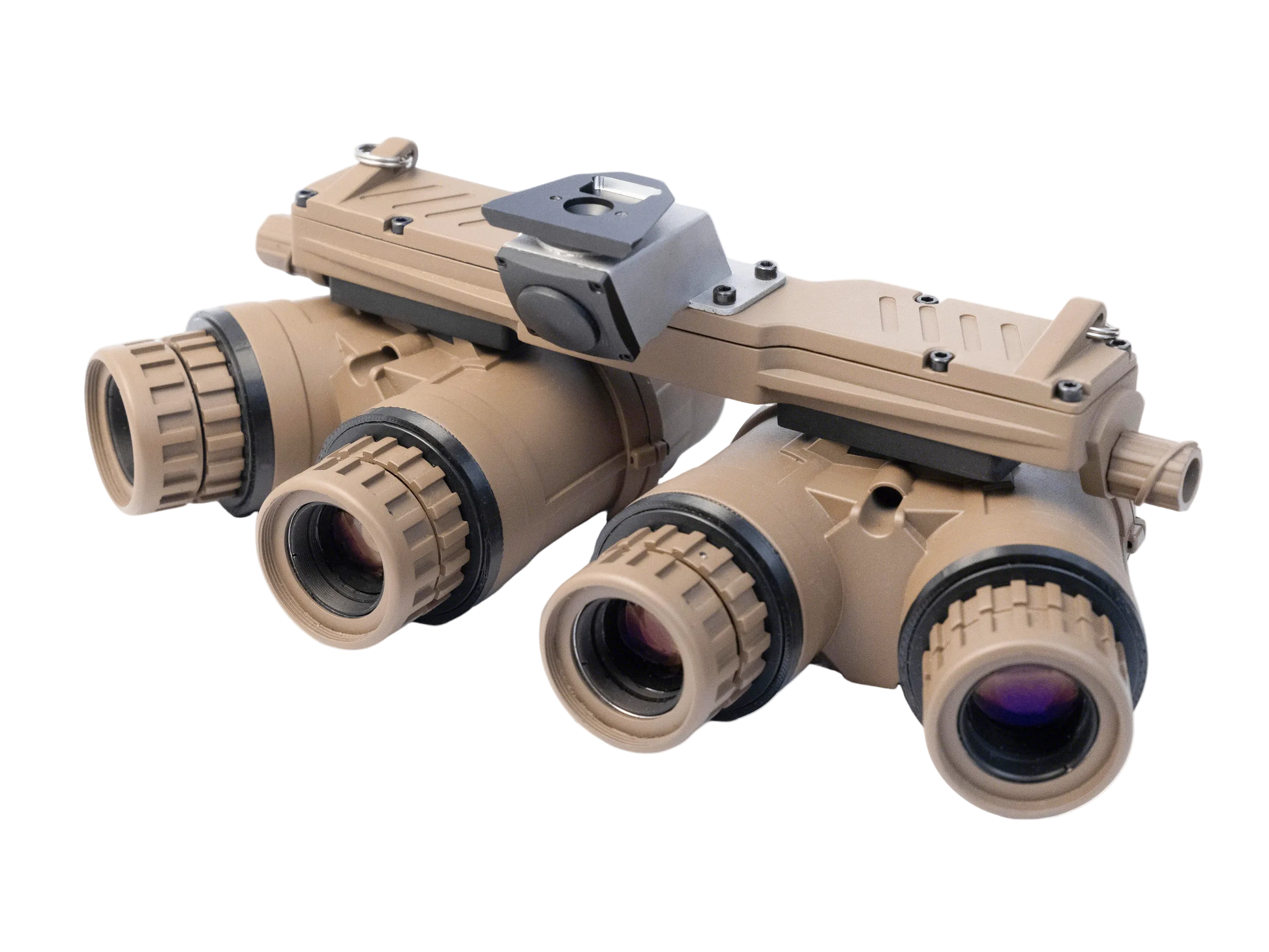

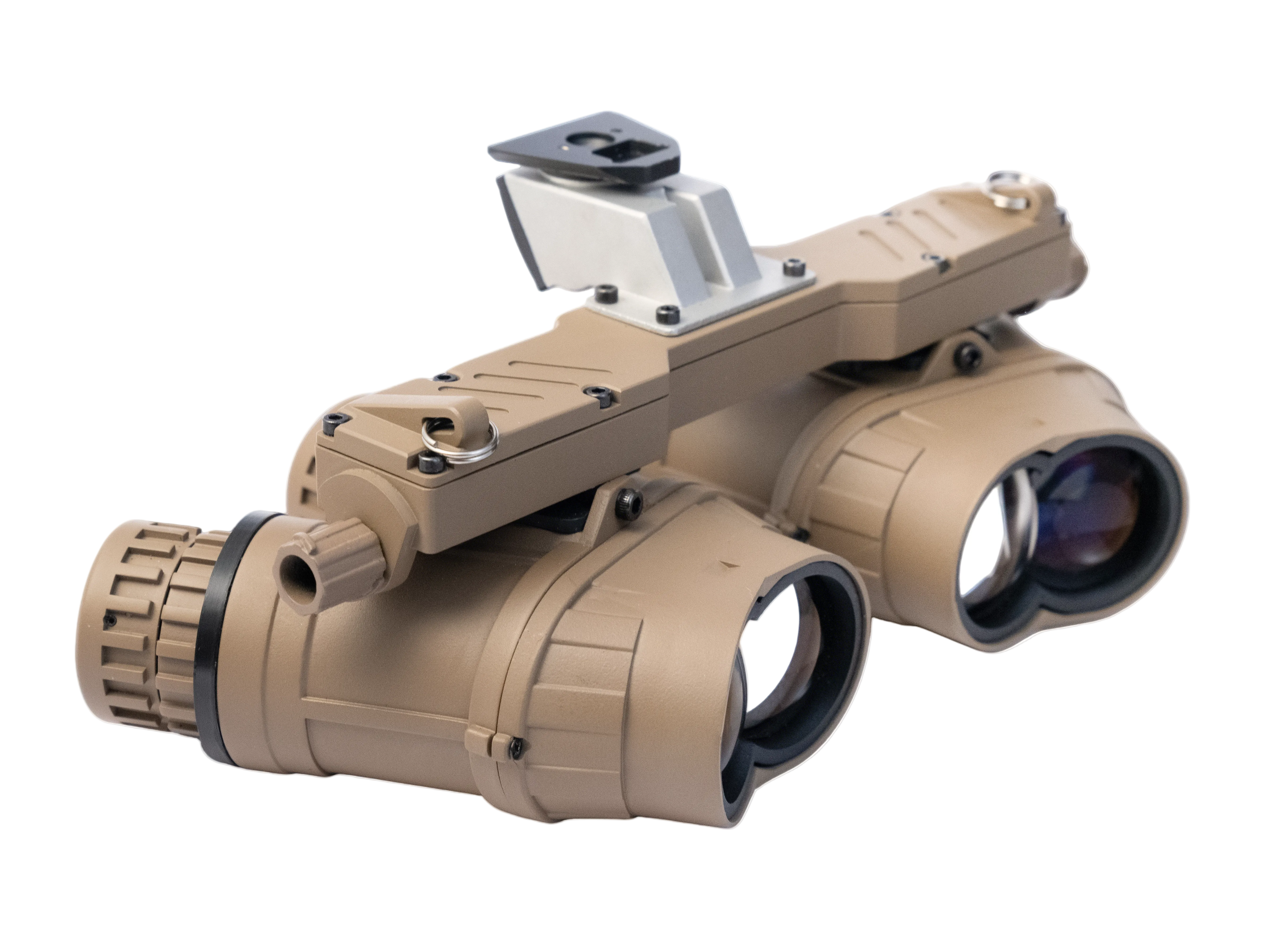

PLAN-18 Head-mounted Night Vision Device
-
Estimated Delivery:Jun 25 - Jun 29
-
Free Shipping & Returns: On all orders over $75
PLAN-18 Head-mounted Night Vision Device
Ultra Wide Field of View】
LAN18 features a wide viewing design with approximately 98×42° field coverage, helping users observe more area in low-light conditions.
【Balanced Optical Performance】
The F1.4 aperture lens provides a balance of brightness, depth of field and image clarity for nighttime observation.
【Comfortable Lightweight Structure】
Designed with a lightweight body around 700g, reducing carrying burden during extended outdoor activities.
【Reliable Outdoor Protection】
IP66-rated housing helps protect against dust and water exposure for dependable performance in various environments.
【Long-Term Usability】
Supports AA and 14500 battery options with efficient power management for extended operation.
| Features | Specification Details |
|---|---|
| Core Highlights | Lightweight & Wide Field of View |
| Helmet Mount Interface | L4G24 |
| Image Intensifier Tube Model | Domestic (China) |
| Image Intensifier Tube Grade | Gen 2 / Gen 3 |
| Gain (US Standard) | Gen 2: 25000 / Gen 3: 50000 |
| Auto Gain | Yes |
| Cathode Type | Gen 2: S24 / Gen 3: Gallium Arsenide (GaAs) |
| Photocathode Sensitivity (μA/lm) | Gen 2: 700 / Gen 3: 2000 |
| Mean Time Between Failures (MTBF) | 10000 Hours |
| Magnification | 0.98x |
| Field of View (°) | 98×42 |
| Diopter Adjustment Range (D) | 0 |
| Distortion Rate | <0.5% |
| Objective Lens System | F1.4, 25mm |
| Focus Adjustment Range (m) | 0.3–∞ |
| Overall Dimensions | 225×105×85mm |
| Weight (g) | 700g |
| Supply Voltage (V) | 3V |
| Battery Type | AA Battery / 14500 Lithium Battery |
| Continuous Operating Time (Hours) | 20 Hours (with External Battery Pack) |
| Operating Temperature Range (°C) | -40 to 50 |
| Dustproof & Waterproof Rating | IP66 |
