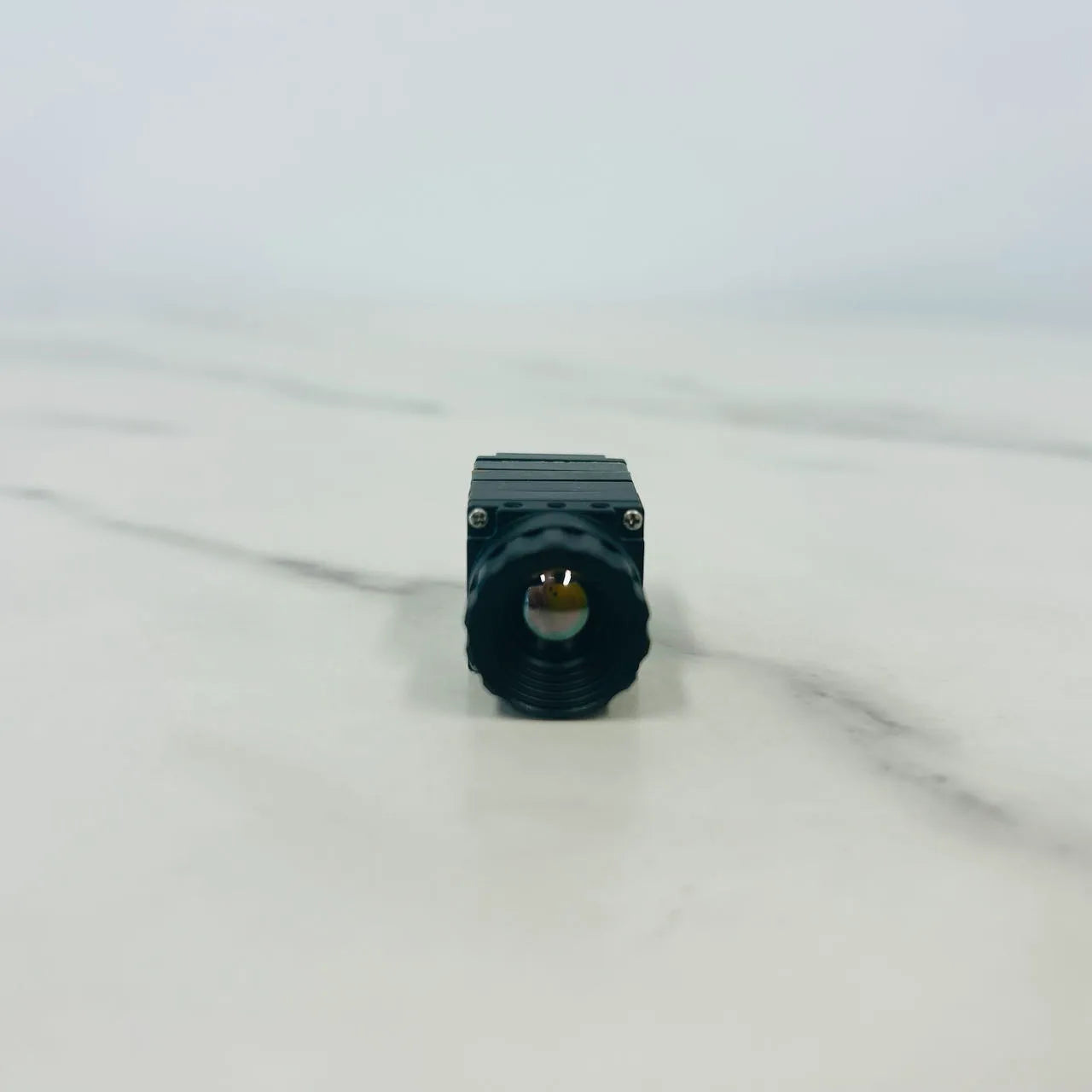

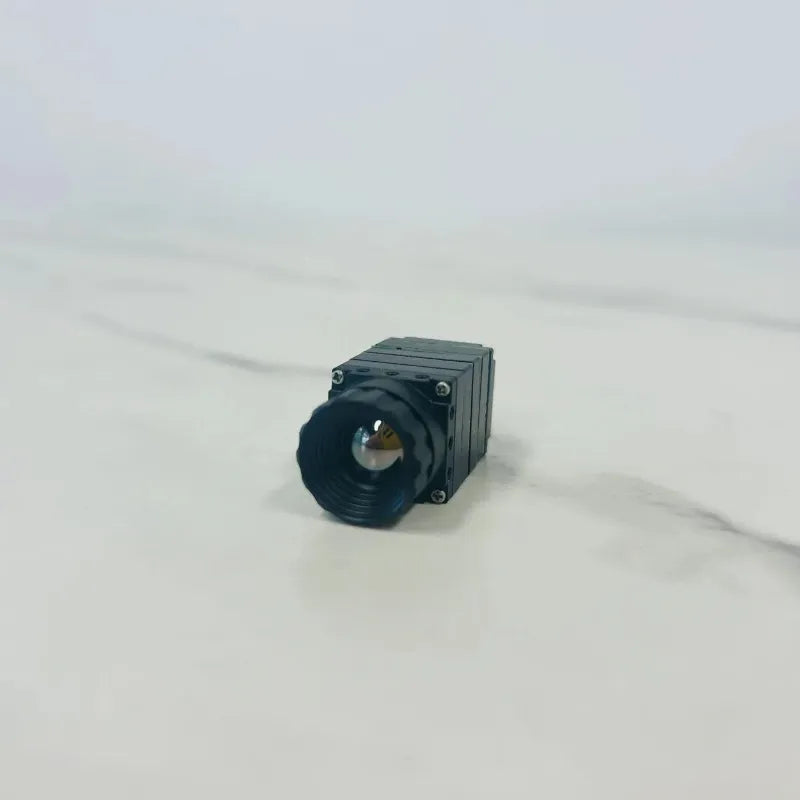

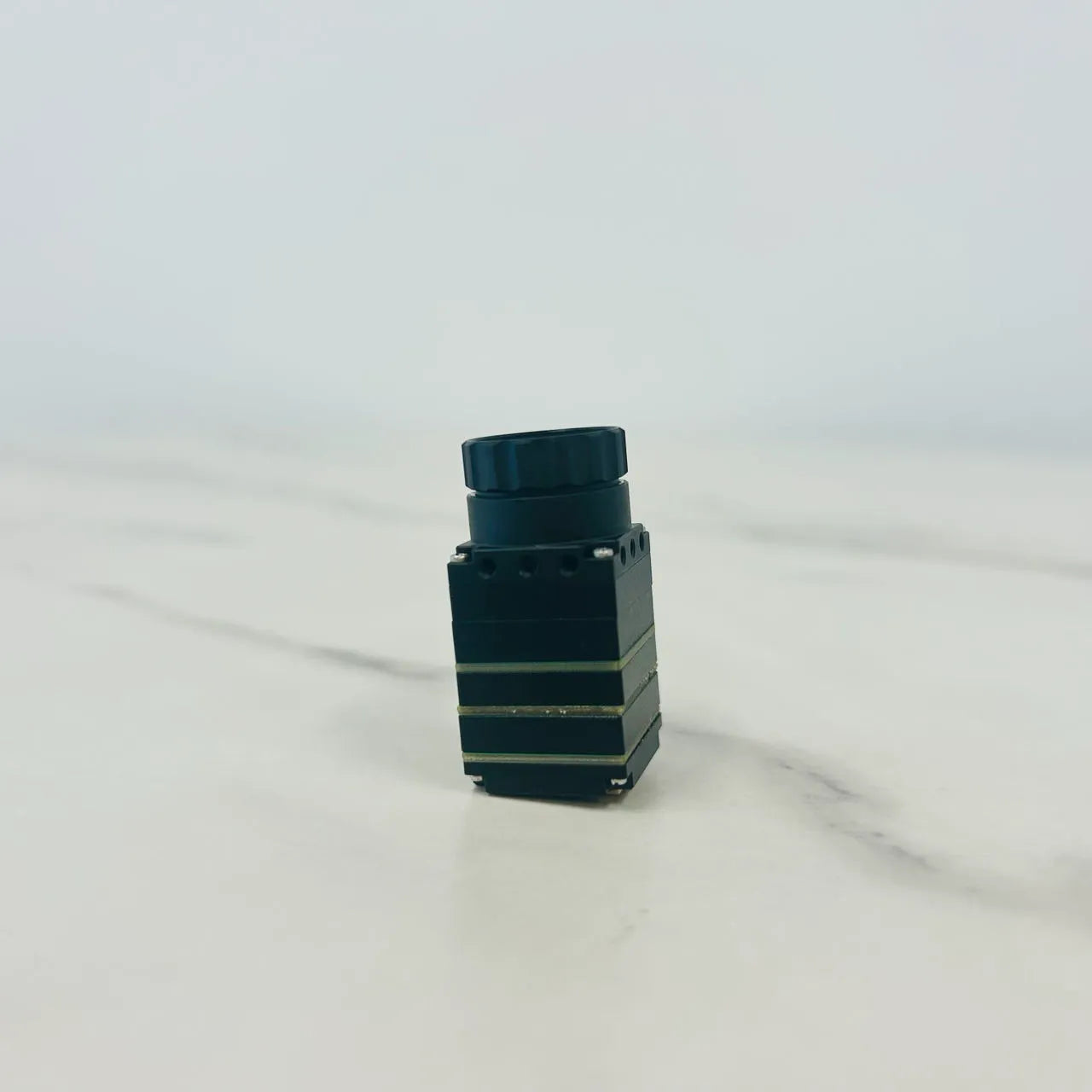

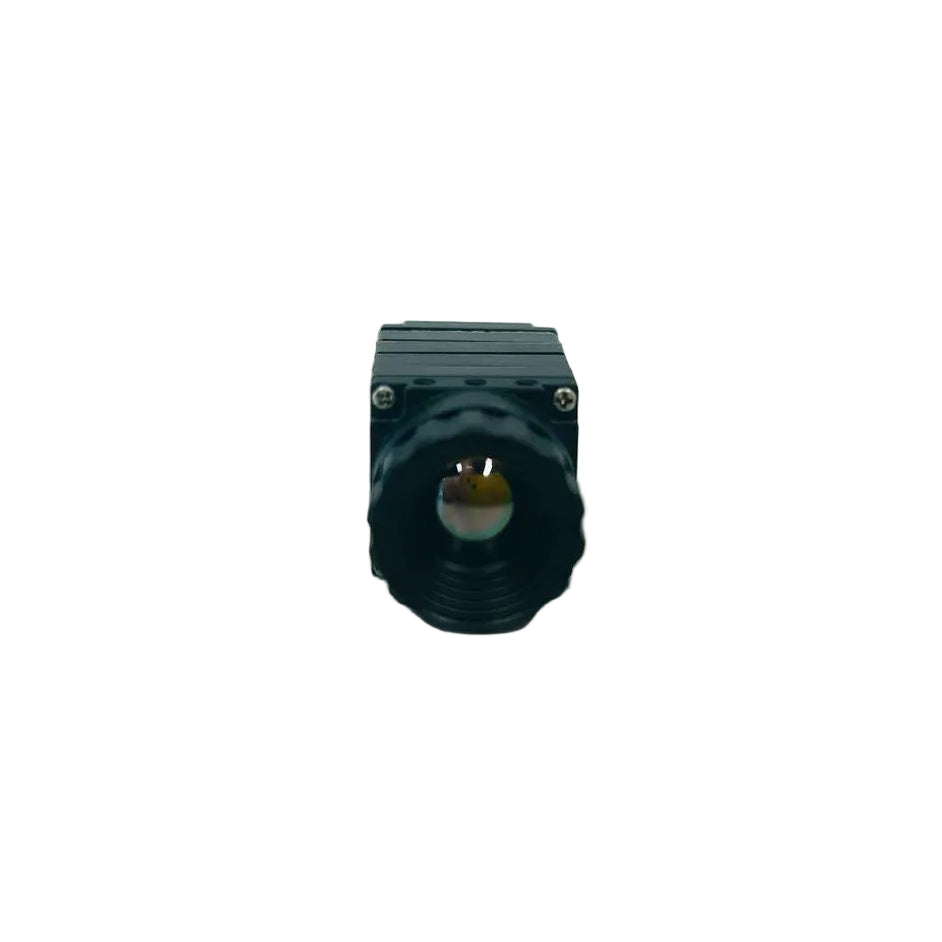

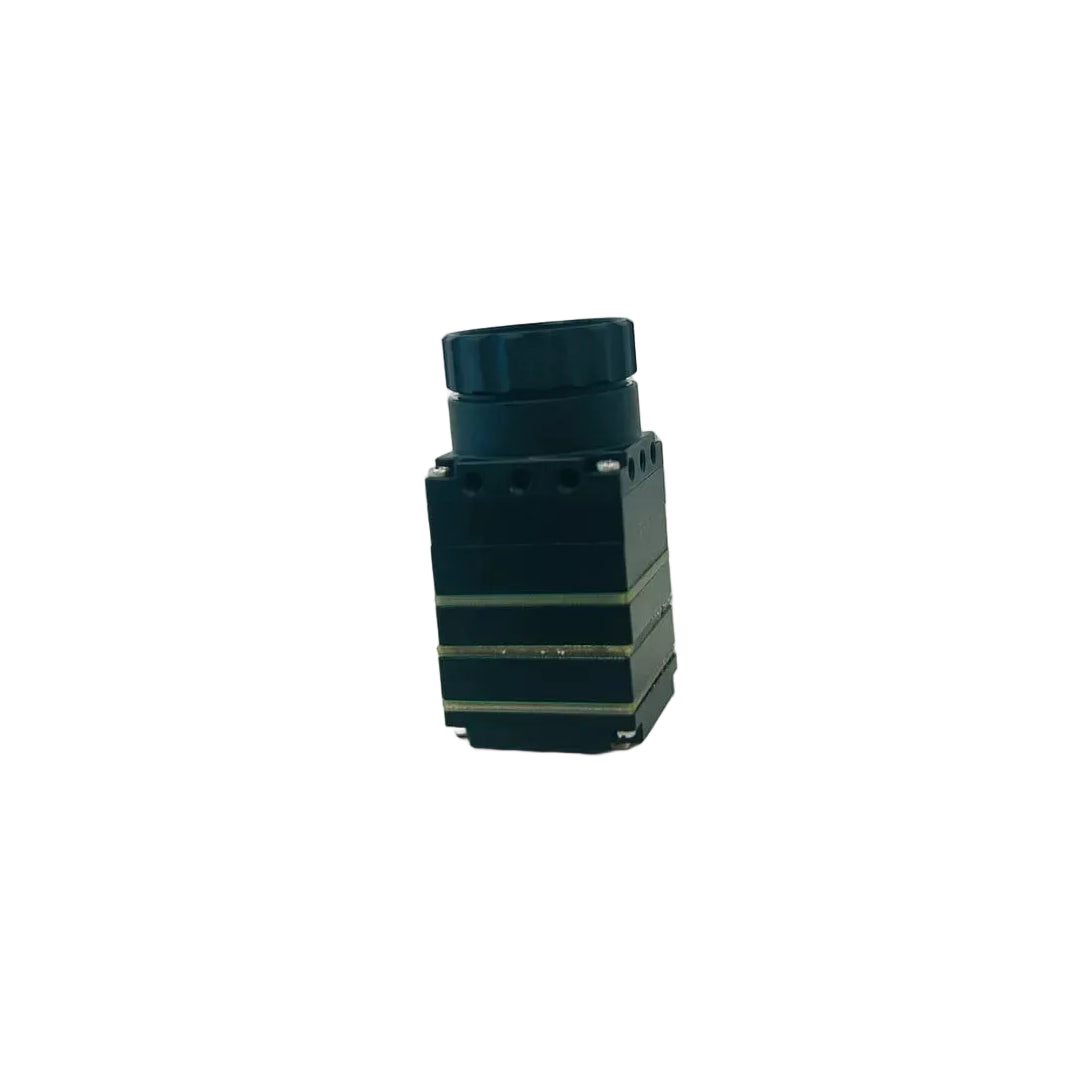

M3C Multifunctional Thermal Imaging Core Module
The M3-C Series features an uncooled vanadium oxide (VOx) focal plane array detector with an 8–14 μm spectral response range, a 12 μm pixel pitch, and a 384 × 288 detector resolution.
With an NETD of ≤35 mK and a 60 Hz frame rate, the M3-C delivers smooth thermal imaging with reliable temperature sensitivity. It is equipped with a CVBS analog video output and a UART control interface, and supports digital zoom, multiple color palettes, and a variety of scene modes. Image brightness and contrast can also be adjusted to suit different operating environments.
The module operates on a wide 4.5–18 VDC input, with power consumption of ≤0.8 W. It is designed for operating temperatures from -30°C to +60°C and offers shock resistance up to 1,000 g. Available with either a 4 mm or 9.1 mm lens, the M3-C Series features a compact, lightweight design for easy integration into a wide range of thermal imaging systems.

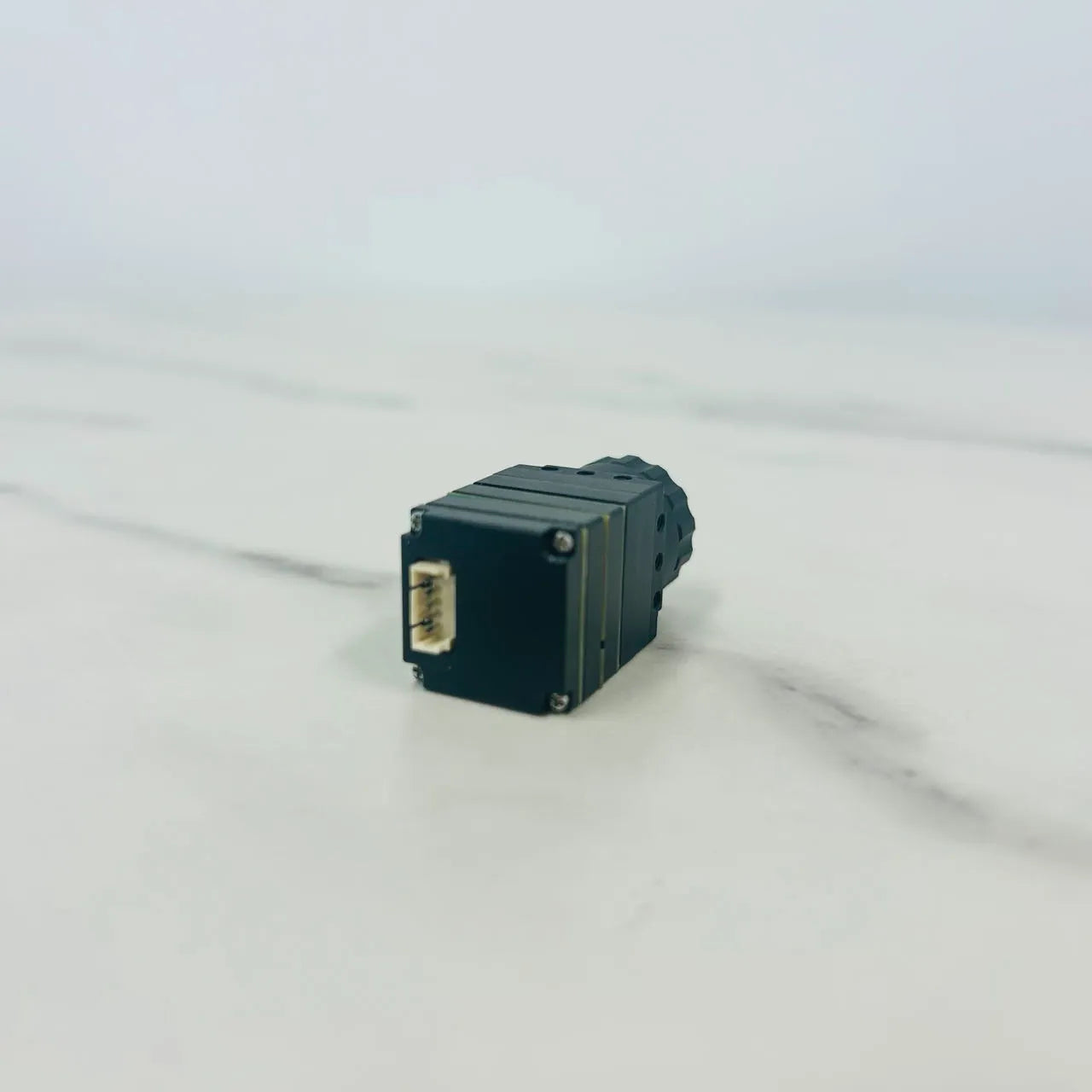

| Function parameters | M3-C |
|---|---|
| Series Model | M3-C |
| Sensor Type | (Uncooled focal plane detector) Vanadium oxide |
| Spectral response | 8-14um |
| Pixel | 12um |
| Array size | 384×288 (effective image array) |
| NETD | ≤35mk( f/1.0 50Hz 300K) |
| Frame rate | 60Hz |
| Analog image interface | CVBS (PAL) |
| Control interface | UART |
| Button functions | Electronic zoom, pseudo color switching |
| False color mode | White Hot (default mode), Black Hot, Red Hot, Iron Red, Fusion, Green Light |
| Scene Mode | User, Plain, Forest |
| Brightness | Support adjustable |
| Contrast | Support adjustable |
| Electronic zoom | 1-X-8X continuous zoom (step size 0.5) |
| Shutter mode | Gear, automatic gear |
| Helmet calibration | UART serial port host computer helmet calibration |
| Non-uniformity correction (NUC) | UART serial port host computer calibration |
| Power input | 4.5v-18v |
| Operating temperature | -30℃~+60℃ |
| Power consumption | ≤0.8 |
| Impact | 1000g |
| Lens specifications | 4mm, 9.1mm |
| Field of view | Horizontal 54.2°, vertical 42°, diagonal 65.3°; horizontal 28.4°, vertical 21.5°, diagonal 35.1° |
| Secondary development | / |
| Size | 17.3mm×17.3mm×35.7mm |
| Weight | 16g |
