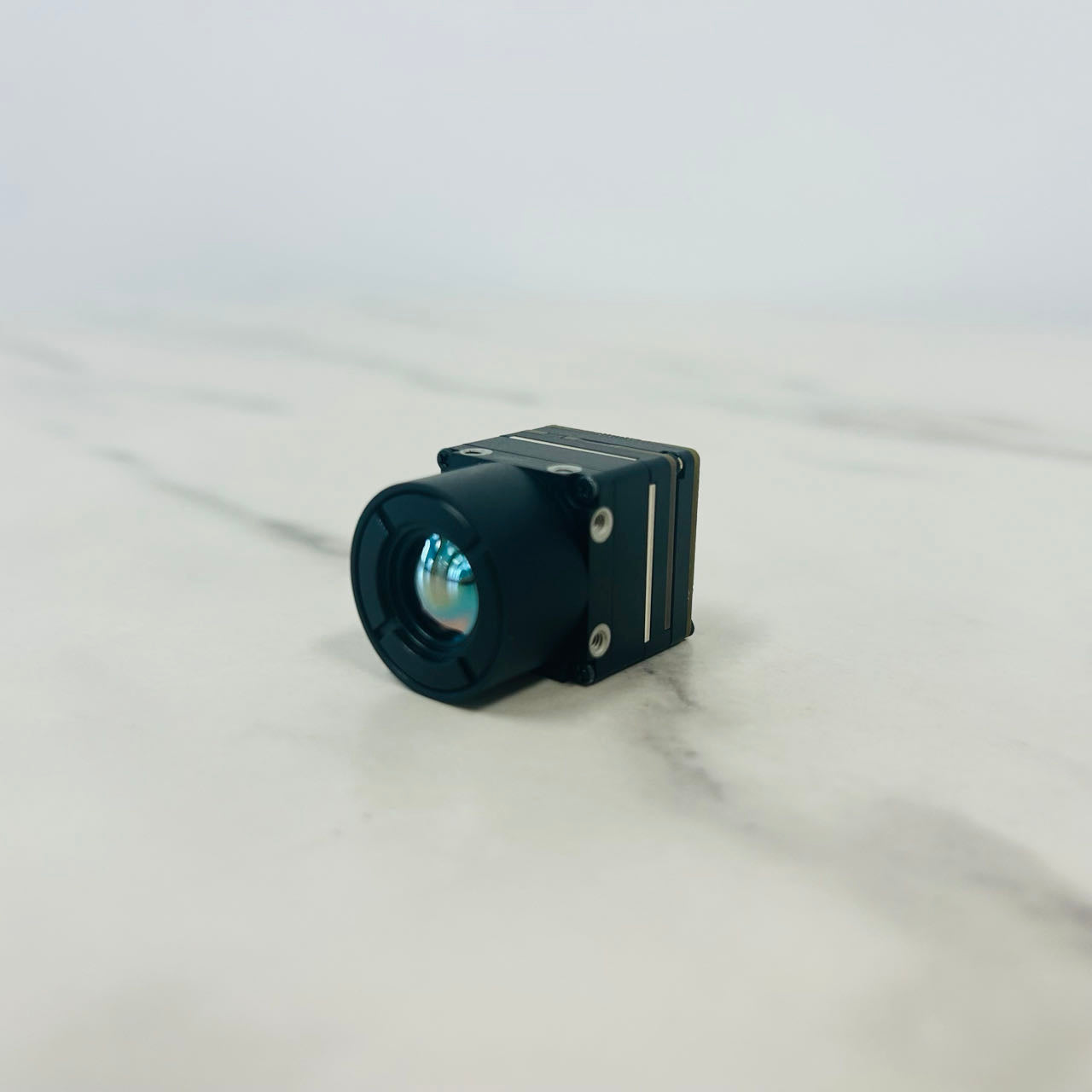

UV Series Thermal Imaging Module
| Project | UV256 | UV384 | UV640 |
|---|---|---|---|
| Sensor Type | Uncooled focal plane array detector (VOx - vanadium oxide) | Uncooled focal plane array detector (VOx - vanadium oxide) | Uncooled focal plane array detector (VOx - vanadium oxide) |
| Spectral Response | 8 - 14μm | 8 - 14μm | 8 - 14μm |
| Pixel Pitch | 12μm | 12μm | 12μm |
| Array Format | 256×192 | 384×288 | 640×512 |
| NETD | <35mK (f/1.0 50Hz 300K) | <35mK (f/1.0 50Hz 300K) | <35mK (f/1.0 50Hz 300K) |
| Frame Rate | 60Hz | 60Hz | 60Hz |
| Digital Image Interface | USB_UVC | USB_UVC | USB_UVC |
| Control Interface | USB | USB | USB |
| Key Functions | Digital zoom, false color switching | Digital zoom, false color switching | Digital zoom, false color switching |
| Pseudo-color Mode | White heat, black heat, air conditioning color chart, red heat, iron red | White heat, black heat, air conditioning color chart, red heat, iron red | White heat, black heat, air conditioning color chart, red heat, iron red |
| Scene Mode | Users, plains, forests | Users, plains, forests | Users, plains, forests |
| Brightness | Adjustable | Adjustable | Adjustable |
| Contrast | Adjustable | Adjustable | Adjustable |
| Digital Zoom | 1× to 8× continuous digital zoom (0.5× increments) | 1× to 8× continuous digital zoom (0.5× increments) | 1× to 8× continuous digital zoom (0.5× increments) |
| Shutter Mode | With shutter, automatic shutter activation | With shutter, automatic shutter activation | With shutter, automatic shutter activation |
| Lid Calibration | Calibration via the host computer's UART serial port | Calibration via the host computer's UART serial port | Calibration via the host computer's UART serial port |
| NUC | Calibration via the host computer's UART serial port | Calibration via the host computer's UART serial port | Calibration via the host computer's UART serial port |
| Power Input | USB (5V) | USB (5V) | USB (5V) |
| Operating Temperature | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ |
| Impact Resistance | 1000g | 1000g | 1000g |
| Lens Options |
Optional: 4mm/6.8mm/9mm/13.5mm/ 15mm/19mm/25mm/35mm |
Optional: 4mm/6.8mm/9mm/13.5mm/ 15mm/19mm/25mm/35mm |
Available in: 4mm/6.8mm/9mm/13.5mm/15mm/19mm/25mm/35mm |
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
Application Scenarios and Solutions
Portable Device Integration
Compact thermal imaging modules can be integrated into portable devices and mobile observation systems.
- Compact size and lightweight design simplify device integration
- Wide-voltage power input supports different system requirements
- Electronic zoom provides flexible adjustment of the observation range
Outdoor Monitoring
High thermal sensitivity supports heat-source detection in forests, plains and other complex outdoor environments.
- Multiple scene modes support different outdoor environments
- Robust design for operation in demanding field conditions
- Wide operating-temperature range for different climates
Industrial Thermal Inspection
Thermal imaging modules can be used for equipment monitoring and rapid identification of abnormal temperature areas.
- Multiple image-processing modes for industrial environments
- Multiple color palettes provide intuitive visualization of thermal differences
- High frame rate supports smooth real-time thermal imaging
UAV / UGV Integration
Compact thermal imaging modules support integration into unmanned aerial and ground platforms.
- Flexible interfaces support integration with different platforms
- Compact architecture simplifies installation and system integration
- Low power consumption supports power-constrained embedded systems
- Stable video output provides consistent thermal imaging performance
